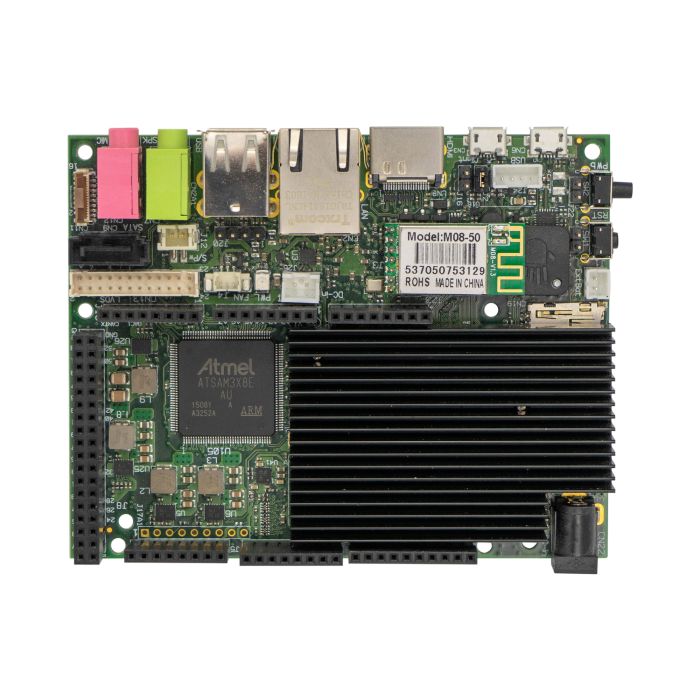

UDOO QUAD
Usually ships in 2-4 days
Is the right choice for advanced as well as experts who want to do simple and advanced projects. It's also perfect for edu side.
Not available
Special Price
$89.00
Regular Price
$135.00
excl. TAX/VAT/SHIPPING
| CPU | NXP™ i.MX6 ARM Cortex-A9 CPU Quad core 1GHz |
|---|---|
| Graphics | Integrated graphics |
| Connectivity | SATA |
| Memory | Low Voltage 1GB DDR3 |
UDOO QUAD
| Processor | NXP™ i.MX6 ARM Cortex-A9 CPU Quad core 1GHz Atmel SAM3X8E ARM Cortex-M3 CPU (same as Arduino Due) |
|---|---|
| Memory | Low Voltage 1GB DDR3 |
| Graphics | Vivante GC 2000 + Vivante GC 355 + Vivante GC 320 |
| Video Interfaces | HDMI interface (up to 1080p) 18/24 bit LVDS interface (up to 1920x1200) + Touch (I2C signals) Camera connection MIPI* CSI |
| Mass Storage | SATA SD card slot onboard |
| Networking | Gigabit Ethernet RJ45 (10/100/1000 Mbps) Optional WiFi Module |
| Usb | 1 x USB OTG (micro-A connector) 1 x USB 2.0 internal pin header (requires adapter cable) 2 x USB 2.0 type A ports 1 x USB to Serial interface (micro-B connector) |
| Multimedia | Integrated graphics: each processor provides 3 separated accelerators for 2D, OpenGL® ES2.0 3D and OpenVG™ |
| Audio | Headphone and Microphone stereo 3.5 mm jacks |
| Power Supply | DC IN Jack 12V 2A |
| Operating System | Android Marshmallow 6.0.1 Linux UDOObuntu2 (Ubuntu 14.04) |
| Arduino Pinout | UDOO® is Arduino-Compatible and features the standard Arduino™ R3 layout (1.0 pinout). Thanks to this, UDOO is fully compatible with Arduino™ shields* |
| Digital Pins | 76 fully available GPIOs |
| Analog Pins | 12 Analog Input Pins 2 Analog Output Pins (DAC) |
| Campo Note | The 76 digital communications pins are shared between the two processors. They can be switched individually as input or output via software muxing *Please note that like the Arduino Due, UDOO® runs at 3.3V and the maximum voltage that the I/O pins can handle is 3.3V. |
View all specs
View less specs
| Processor | NXP™ i.MX6 ARM Cortex-A9 CPU Quad core 1GHz Atmel SAM3X8E ARM Cortex-M3 CPU (same as Arduino Due) |
|---|---|
| Memory | Low Voltage 1GB DDR3 |
| Graphics | Vivante GC 2000 + Vivante GC 355 + Vivante GC 320 |
| Video Interfaces | HDMI interface (up to 1080p) 18/24 bit LVDS interface (up to 1920x1200) + Touch (I2C signals) Camera connection MIPI* CSI |
| Mass Storage | SATA SD card slot onboard |
| Networking | Gigabit Ethernet RJ45 (10/100/1000 Mbps) Optional WiFi Module |
| Usb | 1 x USB OTG (micro-A connector) 1 x USB 2.0 internal pin header (requires adapter cable) 2 x USB 2.0 type A ports 1 x USB to Serial interface (micro-B connector) |
| Multimedia | Integrated graphics: each processor provides 3 separated accelerators for 2D, OpenGL® ES2.0 3D and OpenVG™ |
| Audio | Headphone and Microphone stereo 3.5 mm jacks |
| Power Supply | DC IN Jack 12V 2A |
| Operating System | Android Marshmallow 6.0.1 Linux UDOObuntu2 (Ubuntu 14.04) |
| Arduino Pinout | UDOO® is Arduino-Compatible and features the standard Arduino™ R3 layout (1.0 pinout). Thanks to this, UDOO is fully compatible with Arduino™ shields* |
| Digital Pins | 76 fully available GPIOs |
| Analog Pins | 12 Analog Input Pins 2 Analog Output Pins (DAC) |
| Campo Note | The 76 digital communications pins are shared between the two processors. They can be switched individually as input or output via software muxing *Please note that like the Arduino Due, UDOO® runs at 3.3V and the maximum voltage that the I/O pins can handle is 3.3V. |
View all specs
View less specs
UDOO QUAD and UDOO DUAL help you move your first step in the world of makers with the reliability of a powerful open source, open hardware Arduino-powered Android / Linux Mini PC.
Launched and funded in 2013 on Kickstarter with the name of UDOO, UDOO DUAL and UDOO QUAD are the first single board computers of the UDOO family. Both the boards follow the same concept of an agile yet powerful next-generation computer, equipped with Linux or Android OS and enhanced by the simplicity of Arduino.
Born for educational applications, the project has sparked many interest in the world of makers and inventors, that have used the platform for the widest range of scopes, including Lunar Rovers, self-driving rovers, 3D printers and Electronic Control Units for cars. Although it is now a 6 years old baby, UDOO QUAD stays indeed among the most powerful maker boards in the market, ensuring a smooth user experience thanks to an i.MX6 processor by NXP (Quad Core for UDOO QUAD, Dual Core for UDOO DUAL), combining together an Arduino DUE-compatible platform based on a SAM3X8E and a Linux / Android computer based on a Cortex-A9.
The board can also be used as a computer for everyday use, but you’ll take the most out of it if you exploit it as an ARM dev board and/or as an Arduino-compatible board. UDOO QUAD finally is designed to be the cornerstone of an embedded Linux development kit, counting on a useful SATA port to attach an external hard disk, as well as Wi-Fi to be ready for the IoT environment.
Warning: UDOO QUAD and UDOO DUAL I/O pins are 3.3V only compliant. Providing shields with higher voltage, like 5V, could damage the board. Use only shields Arduino DUE-compatible (3.3V).
List of components:
- 1x UDOO QUAD
You can check out our Kickstarter Campaign.
