UDOO BOLT GEAR
€558.00
UDOO BOLT GEAR
Usually ships in 2-4 days
The Speed Force turned Mini PC
Available
€558.00
excl. TAX/VAT/SHIPPING
| CPU | AMD Ryzen™ Embedded V1605B Quad Core/eight Thread @ 2.0ghz (3.6ghz Boost) |
|---|---|
| Graphics | Amd Radeon™ Vega 8 Graphics (8 Gpu Cu) |
| Connectivity | Ssd Sata Module Slot M.2 Socket Key B 2260; NVMe Module Slot M.2 Socket Key M 2280; Sata 3.0 6 Gbit/s Standard Connector |
| Memory | 2x Ddr4 Dual-channel 64-bit So-dimm Sockets With Ecc Support Up To 32gb 2400 Mt/s |
UDOO BOLT GEAR
| Processor | AMD Ryzen™ Embedded V1605B Quad Core/eight Thread @ 2.0ghz (3.6ghz Boost) |
|---|---|
| Cores | 4 |
| Memory | 2x Ddr4 Dual-channel 64-bit So-dimm Sockets With Ecc Support Up To 32gb 2400 Mt/s |
| Graphics | Amd Radeon™ Vega 8 Graphics (8 Gpu Cu) |
| Video Interfaces | 2 X Hdmi 1.4 / 2.0a (Cec). 2 X Dp Alternate Mode On Usb Type-c |
| Mass Storage | Ssd Sata Module Slot M.2 Socket Key B 2260 (Featured Also Pci-e X2) Nvme Module Slot M.2 Socket Key M 2280 (Pci-e X4 Gen 3 Interface) Sata 3.0 6 Gbit/s Standard Connector |
| Networking | Gigabit Ethernet (Rj-45) Realtek Rtl8111g Wifi/bt Combo Module Slot M.2 Socket 1 Key E 2230 |
| Usb | 2x Usb 3.0 Type-A 2x Usb Type-C: - Usb 3.1 Gen 2 - Displayport Alternate Mode - Usb Power Delivery (Usb-pd) 3.0 |
| Multimedia | Directx® 12, Opencl™, Opengl®, The Vulkan® Api H.265 Decode & Encode (8-bit), Vp9 Decode |
| Audio | Hd Audio Codec Realtek Alc888 3.5“ Combo Connector: Headphone + Microphone 3.5” Combo Connector: S/pdif Optical + Stereo Pre-amplified Stereo Speaker Connectors |
| Other Interfaces | Fan Controller, Rtc Battery Included |
| Power Supply | DC IN Jack 19V 65W USB Type-C Power Delivery |
| Operating System | Windows 10, 8.1 Any Linux Distribution for X86 64bit platform |
| Dimensions | 12CM X 12CM - 4.72” X 4.72” |
| Microcontroller | ATmega32U4 |
| Arduino Other Interfaces | Arduino Leonardo-compatible |
| Digital Pins | Arduino Leonardo-compatible I/O: - 12x Analog Inputs - Up To 23x Digital I/o (7 Pwm) - 1x Uart, 1x I2c, 1x Spi 3x Grove Connectors: - 1x Analog Input, 1x Uart Or Digital I/o, 1x I2c Or Digital I/O Embedded Controller I/o: - 2x Uart, 2x I2c, 1x Spi, 1x Keyboard Scan, 1x Fan Controller, 10x Gpio |
View all specs
View less specs
| Processor | AMD Ryzen™ Embedded V1605B Quad Core/eight Thread @ 2.0ghz (3.6ghz Boost) |
|---|---|
| Cores | 4 |
| Memory | 2x Ddr4 Dual-channel 64-bit So-dimm Sockets With Ecc Support Up To 32gb 2400 Mt/s |
| Graphics | Amd Radeon™ Vega 8 Graphics (8 Gpu Cu) |
| Video Interfaces | 2 X Hdmi 1.4 / 2.0a (Cec). 2 X Dp Alternate Mode On Usb Type-c |
| Mass Storage | Ssd Sata Module Slot M.2 Socket Key B 2260 (Featured Also Pci-e X2) Nvme Module Slot M.2 Socket Key M 2280 (Pci-e X4 Gen 3 Interface) Sata 3.0 6 Gbit/s Standard Connector |
| Networking | Gigabit Ethernet (Rj-45) Realtek Rtl8111g Wifi/bt Combo Module Slot M.2 Socket 1 Key E 2230 |
| Usb | 2x Usb 3.0 Type-A 2x Usb Type-C: - Usb 3.1 Gen 2 - Displayport Alternate Mode - Usb Power Delivery (Usb-pd) 3.0 |
| Multimedia | Directx® 12, Opencl™, Opengl®, The Vulkan® Api H.265 Decode & Encode (8-bit), Vp9 Decode |
| Audio | Hd Audio Codec Realtek Alc888 3.5“ Combo Connector: Headphone + Microphone 3.5” Combo Connector: S/pdif Optical + Stereo Pre-amplified Stereo Speaker Connectors |
| Other Interfaces | Fan Controller, Rtc Battery Included |
| Power Supply | DC IN Jack 19V 65W USB Type-C Power Delivery |
| Operating System | Windows 10, 8.1 Any Linux Distribution for X86 64bit platform |
| Dimensions | 12CM X 12CM - 4.72” X 4.72” |
| Microcontroller | ATmega32U4 |
| Arduino Other Interfaces | Arduino Leonardo-compatible |
| Digital Pins | Arduino Leonardo-compatible I/O: - 12x Analog Inputs - Up To 23x Digital I/o (7 Pwm) - 1x Uart, 1x I2c, 1x Spi 3x Grove Connectors: - 1x Analog Input, 1x Uart Or Digital I/o, 1x I2c Or Digital I/O Embedded Controller I/o: - 2x Uart, 2x I2c, 1x Spi, 1x Keyboard Scan, 1x Fan Controller, 10x Gpio |
View all specs
View less specs

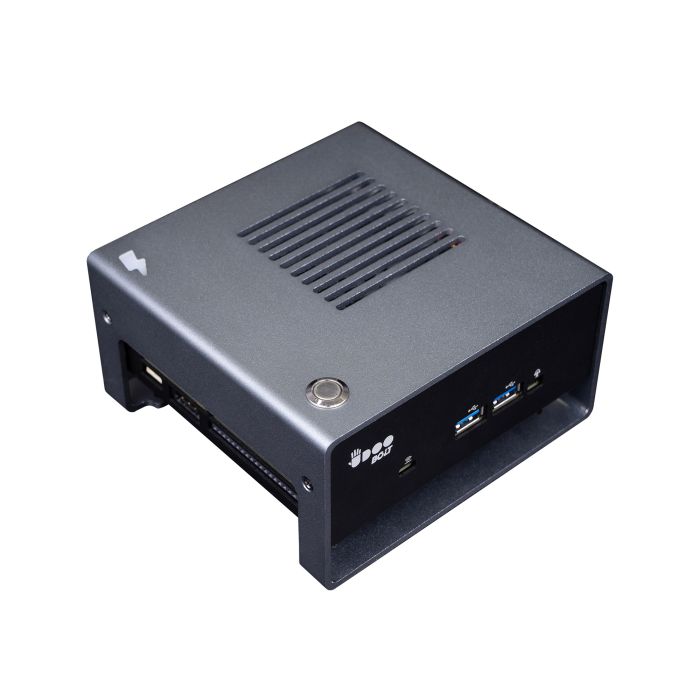

UDOO BOLT GEAR is a lightning-fast and customizable solution that is ready to accept a vast array of memory, storage, and operating systems.
It is a hand-size Arduino-compatible Mini PC based on an AMD Ryzen™ Embedded V1000 Processor - a 4-cores, 8-threads CPU. On top of that, it features AMD Radeon™ “Vega” 8 Graphics. Thanks to its 2 full-featured USB-C and 2 HDMI 2.0, it can handle four 4K monitors simultaneously. All this power consumes very little, as the CPU's thermal design power is just 25W.
UDOO BOLT GEAR’s stylish design makes it the perfect match for any environment - living room, office, whatever. Compact and lightweight at 13 cm x 13 cm x 7 cm, it fits in the palm of the hand, and can be easily attached to the back of a VESA mount-display.
UDOO BOLT GEAR is designed for businesses, developers, and enthusiasts. It is ideal for several scenarios, such as work from home, productivity, entertainment, and rapid prototyping.
List of Components:
1x UDOO BOLT GEAR (this UDOO BOLT version comes WITHOUT eMMC)
1x METAL CASE
1x KIT M.2 WIFI/BT
1x 19V 65W AC POWER ADAPTER
1x EU POWER CABLE
1x USA POWER CABLE
Discover More.
It is a hand-size Arduino-compatible Mini PC based on an AMD Ryzen™ Embedded V1000 Processor - a 4-cores, 8-threads CPU. On top of that, it features AMD Radeon™ “Vega” 8 Graphics. Thanks to its 2 full-featured USB-C and 2 HDMI 2.0, it can handle four 4K monitors simultaneously. All this power consumes very little, as the CPU's thermal design power is just 25W.
UDOO BOLT GEAR’s stylish design makes it the perfect match for any environment - living room, office, whatever. Compact and lightweight at 13 cm x 13 cm x 7 cm, it fits in the palm of the hand, and can be easily attached to the back of a VESA mount-display.
UDOO BOLT GEAR is designed for businesses, developers, and enthusiasts. It is ideal for several scenarios, such as work from home, productivity, entertainment, and rapid prototyping.
List of Components:
1x UDOO BOLT GEAR (this UDOO BOLT version comes WITHOUT eMMC)
1x METAL CASE
1x KIT M.2 WIFI/BT
1x 19V 65W AC POWER ADAPTER
1x EU POWER CABLE
1x USA POWER CABLE
Discover More.
