UDOO X86 II ULTRA

Usually ships in 2-4 days

The most powerful X86 maker board ever and an Arduino™ Leonardo-compatible platform, all embedded on the same board.

Not available

Quantity:

€429.20 excl. TAX/VAT/SHIPPING

More Information
CPU	CPU Intel Pentium N3710 2.56 GHZ
Graphics	Intel HD Graphics 405. Up to 700 MHz
Connectivity	32GB eMMC storage
Memory	8 GB DDR3L Dual Channel

UDOO X86 II ULTRA

Full Specs

More Information
Processor	CPU Intel Pentium N3710 2.56 GHz
Cores	4
Memory	8 GB DDR3L Dual Channel
Graphics	Intel HD Graphics 405 Up to 700 MHz 16 execution units
Video Interfaces	1x HDMI 2x miniDP++ connectors
Mass Storage	32GB eMMC storage Standard SATA connector M.2 Key B SSD slot Micro SD card slot
Networking	Gigabit Ethernet connector M.2 Key E slot for optional Wireless modules
Usb	3 x USB 3.0 type-A sockets
Multimedia	HW Video decode: H.265/HEVC, H264, MPEG2, MVC, VC-1, WMV9, JPEG, VP8; HW Video encode: H.264, MVC, JPEG
Audio	HD audio codec ALC 283CG Microphone + Headphone combo connector Preamplified speaker output S/PDIF output
Other Interfaces	IR interface LPC - 2 x I2C - GPIOs - Touch Screen Management signals on expansion connector RTC Battery + Connector Included
Power Supply	DC IN Jack 12V 3A
Operating System	Windows 10, 8.1, 7 Any Linux Distribution for X86 platform Android
Dimensions	120 mm x 85 mm - 4.72 inch x 3.35 inch
Microcontroller	ATmega32U4
Arduino Other Interfaces	1 UART 1 x i2C 1 x SPI
Arduino Pinout	Arduino Leonardo-compatible and compatible with most arduino shields 5V compliant
Digital Pins	Up to 23 x digital I/O (7 PWM)
Analog Pins	12 x Analog input

View all specs

View less specs

Full Specs

More Information
Processor	CPU Intel Pentium N3710 2.56 GHz
Cores	4
Memory	8 GB DDR3L Dual Channel
Graphics	Intel HD Graphics 405 Up to 700 MHz 16 execution units
Video Interfaces	1x HDMI 2x miniDP++ connectors
Mass Storage	32GB eMMC storage Standard SATA connector M.2 Key B SSD slot Micro SD card slot
Networking	Gigabit Ethernet connector M.2 Key E slot for optional Wireless modules
Usb	3 x USB 3.0 type-A sockets
Multimedia	HW Video decode: H.265/HEVC, H264, MPEG2, MVC, VC-1, WMV9, JPEG, VP8; HW Video encode: H.264, MVC, JPEG
Audio	HD audio codec ALC 283CG Microphone + Headphone combo connector Preamplified speaker output S/PDIF output
Other Interfaces	IR interface LPC - 2 x I2C - GPIOs - Touch Screen Management signals on expansion connector RTC Battery + Connector Included
Power Supply	DC IN Jack 12V 3A
Operating System	Windows 10, 8.1, 7 Any Linux Distribution for X86 platform Android
Dimensions	120 mm x 85 mm - 4.72 inch x 3.35 inch
Microcontroller	ATmega32U4
Arduino Other Interfaces	1 UART 1 x i2C 1 x SPI
Arduino Pinout	Arduino Leonardo-compatible and compatible with most arduino shields 5V compliant
Digital Pins	Up to 23 x digital I/O (7 PWM)
Analog Pins	12 x Analog input

View all specs

View less specs

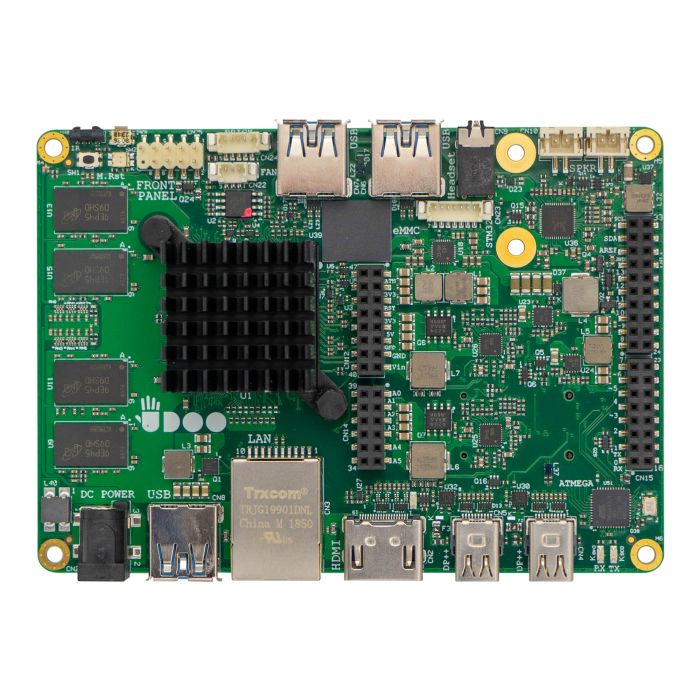

UDOO X86 II is the New PC: the most powerful x86 maker board ever and an Arduino™ Leonardo-compatible platform, all embedded on the same board.

On UDOO X86 II you can run all the software available for the PC world, from gaming to video streaming, from graphical editors to professional development platforms, plus all the software or the Arduino™ Leonardo world, including all the sketches, libraries and the official Arduino™ Leonardo IDE.

You won’t ever worry about lack of drivers or stuff like that. This is a true next-generation computer.

It is based on Quad Core 64-bit new-generation x86 processors made by Intel®, designed for the PC domain. Prodigious processors concentrated in 14 nm, with an amount of energy consumption of 5 or 6 Watt.

The board can be powered by a DC-jack with a standard 5.5mm/2.1mm barrel jack, internal positive, Voltage 12V ± 5%. This is not included. Alternatively, power can be provided though the VIN pin located on the header.

Screw/Spacers for M.2 SSD and Wifi/BT already included.

List of Components:

- 1x UDOO X86 ULTRA

- 1x M.2 Key B (2260) kit:
1x flat head screw M3x12mm
1x round spacer 6mm
1x washer 0.5 mm
1x nut M3

- 1x M.2 Key E (2230) kit:
1x flat head screw M3x8mm
1x round spacer 2mm
1x washer 0.5 mm
1x nut M3

You can check out our Kickstarter Campaign.
