SOM-COMe-CT6-TGL-U HEAT SINK
41,25 €
Heat Sink Attivo.
DEV-KIT-COMe-T6
1.425,00 €
Compatibile con x86 e Arm COM Express® Type 6 modules.
CARRIER-COMe-T6-C30
235,50 €
Carrier Board per Moduli COM Express™ tipo 6.
CABLE KIT CARRIER C30
38,25 €
Kit cavi per CCOMe-C30.

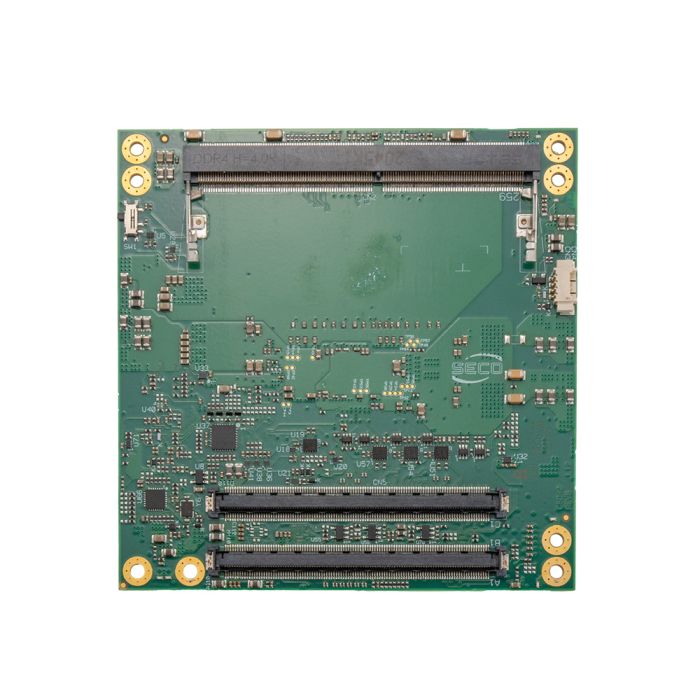

SOM-COMe-CT6-TGL-U 1115GRE
609,00 €
SOM-COMe-CT6-TGL-U 1115GRE
Solitamente spedito in 2-4 giorni
Con processore Intel® Core™ di 11ma generazione i3-1115GRE.
Disponibile
609,00 €
escl. IVA/SPEDIZIONE
| CPU | Intel® Core™ i3-1115GRE, Dual Core @3.0GHz (3.9GHz Turbo Boost), 6MB Cache, with IBECC, 28W TDP (12W cTDP), with Hyperthreading - Industrial |
|---|---|
| Graphics | Integrated Intel® Iris® Xe Graphics, up to 96 Execution Units |
| Connectivity | 1x GbE; 4x SuperSpeed USB 5Gbps; 8x USB 2.0; 8x PCI-e x1 Gen3; PEG x4 Gen4 |
| Memory | Two DDR4 SO-DIMM slots supporting DDR4-3200 memory, up to 64GB IBECC DDR4 memory modules supported only with Intel® Core™ Industrial SoCs |
SOM-COMe-CT6-TGL-U 1115GRE
| Processore | Intel® Core™ i3-1115GRE, Dual Core @3.0GHz (3.9GHz Turbo Boost), 6MB Cache, with IBECC, 28W TDP (12W cTDP), with Hyperthreading - Industrial |
|---|---|
| Core | 2 |
| Memoria | Two DDR4 SO-DIMM slots supporting DDR4-3200 memory, up to 64GB IBECC DDR4 memory modules supported only with Intel® Core™ Industrial SoCs |
| Scheda Grafica | Intel® Iris® Xe Graphics, up to 96 Execution Units Up to 4 independent displays supported Support DirectX 12, OpenGL 4.6, OpenCL 3.0 and Vulkan 1.2 HW accelerated video decode AVC/H.264, HEVC/H.265, VP81, VP9, AV1 HW accelerated video encode AVC/H.264, HEVC/H.265, VP81, VP9 |
| Interfacce Video | Up to 3x Digital Display Interfaces (DDIs), supporting DP 1.2, eDP 1.4, HDMI 1.4, DVI 1 x eDP 1.4 or Single/Dual-Channel 18-/24-bit LVDS interface 1 x VGA interface eDP, DP: up to 5120x3200 @60Hz 24bpp / 7680x4320 @60Hz 30bpp with DSC HDMI: up to 4096x2160 @24Hz, 24bpp LVDS: up to 1920x1200 @60Hz VGA: up to 2048 x 1536 @50Hz |
| Memoria Di Massa | 2x SATA Gen3 channels 2x PCI-e x4 ports available for M.2 NVMe drives |
| Rete | Gigabit Ethernet interface Intel® I225 GbE controller |
| Usb | 4x SuperSpeed USB 5Gbps host ports 8x USB 2.0 Host ports |
| Audio | HD audio interface |
| Porte Seriali | 2x UARTs |
| Altre Interfacce | 8x PCI-e x1 Gen3 lanes PCI-express Graphics (PEG) x4 Gen4 SPI, I2C, SM bus, thermal management, FAN management LPC bus Optional TPM 2.0 on-board LID#/SLEEP#/PWRBTN#, Watchdog 4x GPI, 4x GPO |
| Alimentazione | 8VDC..20VDC, +5VSB (optional), +3VRTC (optional) |
| Sistema Operativo | Microsoft® Windows 10 Microsoft® Windows 10 IoT Core Linux |
| Dimensioni | 95 x 95 mm (COM Express® Compact Form factor, Type 6 pinout) |
| Operating Temperature | 0°C ÷ +60°C (Commercial) -40°C ÷ +85°C (Industrial) Measured at any point of SECO standard heatspreader for this product, during any and all times (including start-up). Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider applicationspecific cooling solutions for the final system to keep the heatspreader temperature in the range indicated. |
Visualizza tutte le specifiche
Visualizza meno specifiche
| Processore | Intel® Core™ i3-1115GRE, Dual Core @3.0GHz (3.9GHz Turbo Boost), 6MB Cache, with IBECC, 28W TDP (12W cTDP), with Hyperthreading - Industrial |
|---|---|
| Core | 2 |
| Memoria | Two DDR4 SO-DIMM slots supporting DDR4-3200 memory, up to 64GB IBECC DDR4 memory modules supported only with Intel® Core™ Industrial SoCs |
| Scheda Grafica | Intel® Iris® Xe Graphics, up to 96 Execution Units Up to 4 independent displays supported Support DirectX 12, OpenGL 4.6, OpenCL 3.0 and Vulkan 1.2 HW accelerated video decode AVC/H.264, HEVC/H.265, VP81, VP9, AV1 HW accelerated video encode AVC/H.264, HEVC/H.265, VP81, VP9 |
| Interfacce Video | Up to 3x Digital Display Interfaces (DDIs), supporting DP 1.2, eDP 1.4, HDMI 1.4, DVI 1 x eDP 1.4 or Single/Dual-Channel 18-/24-bit LVDS interface 1 x VGA interface eDP, DP: up to 5120x3200 @60Hz 24bpp / 7680x4320 @60Hz 30bpp with DSC HDMI: up to 4096x2160 @24Hz, 24bpp LVDS: up to 1920x1200 @60Hz VGA: up to 2048 x 1536 @50Hz |
| Memoria Di Massa | 2x SATA Gen3 channels 2x PCI-e x4 ports available for M.2 NVMe drives |
| Rete | Gigabit Ethernet interface Intel® I225 GbE controller |
| Usb | 4x SuperSpeed USB 5Gbps host ports 8x USB 2.0 Host ports |
| Audio | HD audio interface |
| Porte Seriali | 2x UARTs |
| Altre Interfacce | 8x PCI-e x1 Gen3 lanes PCI-express Graphics (PEG) x4 Gen4 SPI, I2C, SM bus, thermal management, FAN management LPC bus Optional TPM 2.0 on-board LID#/SLEEP#/PWRBTN#, Watchdog 4x GPI, 4x GPO |
| Alimentazione | 8VDC..20VDC, +5VSB (optional), +3VRTC (optional) |
| Sistema Operativo | Microsoft® Windows 10 Microsoft® Windows 10 IoT Core Linux |
| Dimensioni | 95 x 95 mm (COM Express® Compact Form factor, Type 6 pinout) |
| Operating Temperature | 0°C ÷ +60°C (Commercial) -40°C ÷ +85°C (Industrial) Measured at any point of SECO standard heatspreader for this product, during any and all times (including start-up). Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider applicationspecific cooling solutions for the final system to keep the heatspreader temperature in the range indicated. |
Visualizza tutte le specifiche
Visualizza meno specifiche
COM Express Type 6 Compact con processore Intel® Core™ di undicesima generazione i3-1115GRE (DC @ 3.0GHz up to 3.9GHz, 28W TDP – 12W cTDP, w/IBECC). (CALYPSO - D40)
Part Number: MD40-7000-2120-I1
Part Number: MD40-7000-2120-I1
Controlla gli articoli da aggiungere al carrello oppure
-
![SOM-COMe-CT6-TGL-U HEAT SINK]()
SOM-COMe-CT6-TGL-U HEAT SINK41,25 € escl. IVA/SPEDIZIONE -
![DEV-KIT-COMe-T6]()
DEV-KIT-COMe-T61.425,00 € escl. IVA/SPEDIZIONE -
![CARRIER-COMe-T6-C30]()
CARRIER-COMe-T6-C30235,50 € escl. IVA/SPEDIZIONE -
![CABLE KIT CARRIER C30]()
CABLE KIT CARRIER C3038,25 € escl. IVA/SPEDIZIONE
|
|
Confronta con prodotti simili
-
SOM-COMe-CT6-TGL-U 1115GRECpuIntel® Core™ i3-1115GRE, Dual Core @3.0GHz (3.9GHz Turbo Boost), 6MB Cache, with IBECC, 28W TDP (12W cTDP), with Hyperthreading - IndustrialGpuIntegrated Intel® Iris® Xe Graphics, up to 96 Execution UnitsRamTwo DDR4 SO-DIMM slots supporting DDR4-3200 memory, up to 64GB
IBECC DDR4 memory modules supported only with Intel® Core™ Industrial SoCs -
SOM-COMe-CT6-TGL-U 1185GRECpuIntel® Core™ i7-1185GRE, Quad Core @2.8GHz (4.4GHz Turbo Boost), 12MB Cache, with IBECC, 28W TDP (12W cTDP), with Hyperthreading - IndustrialGpuIntegrated Intel® Iris® Xe Graphics, up to 96 Execution UnitsRamTwo DDR4 SO-DIMM slots supporting DDR4-3200 memory, up to 64GB
IBECC DDR4 memory modules supported only with Intel® Core™ Industrial SoCs
