SOM-SMARC-MX8M HEAT SPREADER
9,75 €
Heat Spreader Passivo.
SOM-SMARC-MX8M HEAT SINK
15,75 €
Heat Sink Passivo.
DEV-KIT-SMARC
952,00 €
2.0 / 2.1 / 2.1.1 Development Kit.

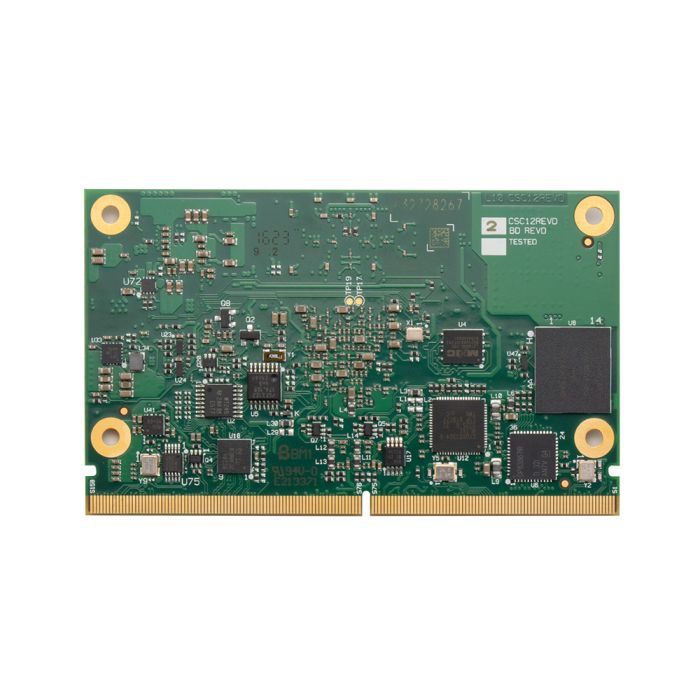

SOM-SMARC-MX8M QUAD 2GB
163,00 €
SOM-SMARC-MX8M QUAD 2GB
Solitamente spedito in 2-4 giorni
Con NXP i.MX8M Quad 1.3 GHz, LPDDR4 2 GB, eMMC 16 GB.
Disponibile
163,00 €
escl. IVA/SPEDIZIONE
| CPU | i.MX8M Quad - 4x Cortex®-A53 cores up to 1.5GHz |
|---|---|
| Graphics | Integrated Graphics Processing Unit, supports 2 independent displays |
| Connectivity | 1 x Gigabit Ethernet interface Optional WiFi + BT LE module onboard |
| Memory | Soldered Down 2GB LPDDR4-3200 memory |
SOM-SMARC-MX8M QUAD 2GB
| Processore | i.MX8M Quad - 4x Cortex®-A53 cores up to 1.5GHz |
|---|---|
| Core | 4 |
| Memoria | Soldered Down 2GB LPDDR4-3200 memory, 32-bit interface |
| Scheda Grafica | Integrated Graphics Processing Unit, supports 2 independent displays Embedded VPU, supports HW decoding of HEVC (H.265), H.264, H.263, MPEG-4, MPEG-2, AVC, VC-1, RV, DivX, VP6, VP8, VP9, JPEG Supports OpenGL ES 3.1, Open CL 1.2. OpenGL 2.X, Vulkan, DirectX, Open VG 1.1 |
| Interfacce Video | HDMI 2.0a interface, supporting HDCP 2.2 and HDCP 1.4 18- / 24-bit Dual Channel LVDS interface (factory option) HDMI Up to 4096 x 2160 @ 60 (4K) LVDS Up to 1920 x 1080 @ 60Hz |
| Memoria Di Massa | Optional SD 4-bit interface QSPI Flash soldered-onboard 16GB eMMC 5.0 drive soldered on-board |
| Rete | 1 x Gigabit Ethernet interface Optional WiFi + BT LE module onboard |
| Usb | 2 USB 3.0 Host ports 2 USB 2.0 Host ports 1 USB 2.0 OTG port |
| Audio | I2S Audio Interface |
| Porte Seriali | Up to 2x UART Tx/Rx/RTS/CTS 2x UART Tx/Rx |
| Altre Interfacce | 2x PCI-e x1 ports 1x 4-lanes + 1x 2-lanes CSI camera interfaces I2C Bus SM Bus 2x SPI interfaces QuadSPI interface 14 x GPI/Os Boot select signals Power Management Signals |
| Alimentazione | +5VDC +3.3V_RTC |
| Sistema Operativo | Linux Yocto Android |
| Dimensioni | 50 x 82 mm (1.97” x 3.23”) |
| Operating Temperature | -40°C ÷ +85°C (Industrial version) *Measured at any point of SECO standard heastpreader for this product, during any and all times (including start-up). Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider application-specific cooling solutions for the final system to keep the heatspreader temperature in the range indicated. |
Visualizza tutte le specifiche
Visualizza meno specifiche
| Processore | i.MX8M Quad - 4x Cortex®-A53 cores up to 1.5GHz |
|---|---|
| Core | 4 |
| Memoria | Soldered Down 2GB LPDDR4-3200 memory, 32-bit interface |
| Scheda Grafica | Integrated Graphics Processing Unit, supports 2 independent displays Embedded VPU, supports HW decoding of HEVC (H.265), H.264, H.263, MPEG-4, MPEG-2, AVC, VC-1, RV, DivX, VP6, VP8, VP9, JPEG Supports OpenGL ES 3.1, Open CL 1.2. OpenGL 2.X, Vulkan, DirectX, Open VG 1.1 |
| Interfacce Video | HDMI 2.0a interface, supporting HDCP 2.2 and HDCP 1.4 18- / 24-bit Dual Channel LVDS interface (factory option) HDMI Up to 4096 x 2160 @ 60 (4K) LVDS Up to 1920 x 1080 @ 60Hz |
| Memoria Di Massa | Optional SD 4-bit interface QSPI Flash soldered-onboard 16GB eMMC 5.0 drive soldered on-board |
| Rete | 1 x Gigabit Ethernet interface Optional WiFi + BT LE module onboard |
| Usb | 2 USB 3.0 Host ports 2 USB 2.0 Host ports 1 USB 2.0 OTG port |
| Audio | I2S Audio Interface |
| Porte Seriali | Up to 2x UART Tx/Rx/RTS/CTS 2x UART Tx/Rx |
| Altre Interfacce | 2x PCI-e x1 ports 1x 4-lanes + 1x 2-lanes CSI camera interfaces I2C Bus SM Bus 2x SPI interfaces QuadSPI interface 14 x GPI/Os Boot select signals Power Management Signals |
| Alimentazione | +5VDC +3.3V_RTC |
| Sistema Operativo | Linux Yocto Android |
| Dimensioni | 50 x 82 mm (1.97” x 3.23”) |
| Operating Temperature | -40°C ÷ +85°C (Industrial version) *Measured at any point of SECO standard heastpreader for this product, during any and all times (including start-up). Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider application-specific cooling solutions for the final system to keep the heatspreader temperature in the range indicated. |
Visualizza tutte le specifiche
Visualizza meno specifiche
SMARC® con NXP i.MX8M Quad 1.3 GHz (VPU decode + HDR10 + GPU), LPDDR4 2 GB, eMMC 16 GB. (LEXELL - C12)
Controlla gli articoli da aggiungere al carrello oppure
-
![SOM-SMARC-MX8M HEAT SINK]()
SOM-SMARC-MX8M HEAT SINK16,50 € escl. IVA/SPEDIZIONE -
![SOM-SMARC-MX8M HEAT SPREADER]()
SOM-SMARC-MX8M HEAT SPREADER10,50 € escl. IVA/SPEDIZIONE -
![DEV-KIT-SMARC]()
DEV-KIT-SMARC963,75 € escl. IVA/SPEDIZIONE
|
|
Confronta con prodotti simili
-
SOM-SMARC-MX8M QUAD 2GBCpui.MX8M Quad - 4x Cortex®-A53 cores up to 1.5GHzGpuIntegrated Graphics Processing Unit, supports 2 independent displaysRamSoldered Down 2GB LPDDR4-3200 memory -
SOM-SMARC-MX8M QUAD LITE 2GBCpui.MX8M QuadLite - 4x Cortex®-A53 cores up to 1.5GHz, no VPUGpuIntegrated Graphics Processing Unit, supports 2 independent displaysRamSoldered Down 2GB LPDDR4-3200 memory,
