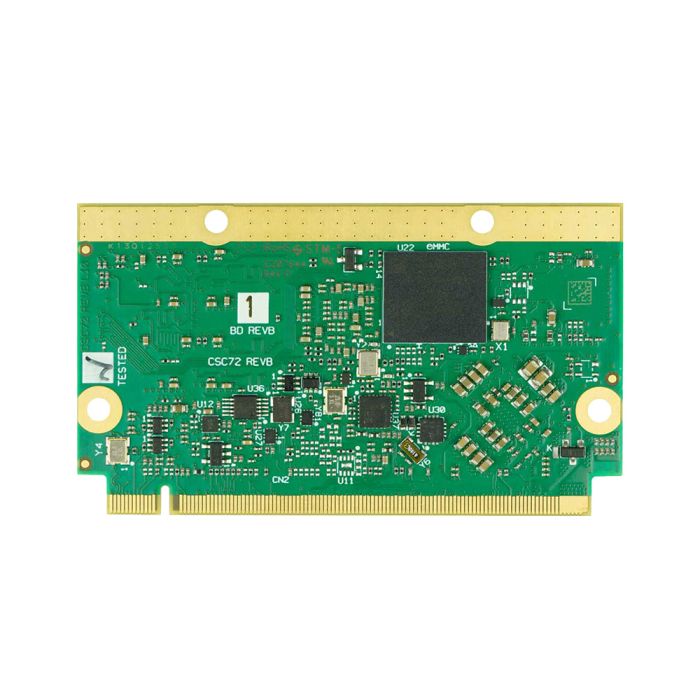

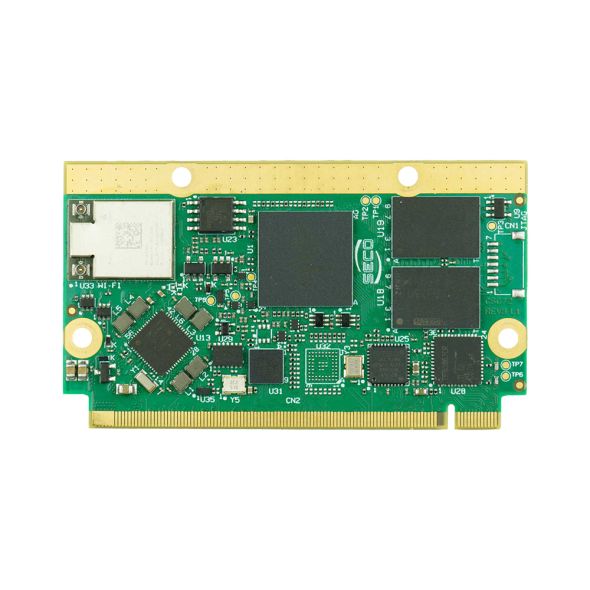

SOM-uQ7-MX8M-MINI-NANO SOLO 1GB
106,50 €
SOM-uQ7-MX8M-MINI-NANO SOLO 1GB
Solitamente spedito in 2-4 giorni
Con NXP i.MX8M Mini Solo, 1GB DDR4, 8GB eMMC.
Non disponibile
106,50 €
escl. IVA/SPEDIZIONE
| CPU | i.MX8M Mini Solo-1x Cortex®-A53 cores up to 1.8GHz |
|---|---|
| Graphics | GC320 2D accelerator + GCNanoUltra 3D accelerator |
| Connectivity | Gigabit Ethernet interface Optional WiFi 802.11 a/b/g/n/ac +BT 5.0 NGFF module soldered on-board |
| Memory | Soldered on-board 1GB DDR4-2400 16-bit bus Memory |
SOM-uQ7-MX8M-MINI-NANO SOLO 1GB
| Processore | i.MX8M Mini Solo-1x Cortex®-A53 cores up to 1.8GHz |
|---|---|
| Core | 1 |
| Memoria | Soldered on-board 1GB DDR4-2400 16-bit bus Memory |
| Scheda Grafica | Vivante GC320 2D accelerator + GCNanoUltra 3D accelerator OpenGL ES 2.0, OpenVG 1.1 support Embedded VPU able to offer: VP9, HEVC/H.265, AVC/H.264, VP8 HW Decoding AVC/H.264, VP8 HW encoding |
| Interfacce Video | Single/Dual Channel 18/24 bit LVDS interface or eDP interface Up to 1920 x 1080p |
| Memoria Di Massa | 8GB eMMC 5.1 drive on-board SD / MMC / SDIO interface Optional QSPI Flash for booting |
| Rete | Gigabit Ethernet interface Optional WiFi 802.11 a/b/g/n/ac +BT 5.0 NGFF module soldered on-board |
| Usb | 5x USB 2.0 Host ports |
| Audio | I2S Audio Interface |
| Porte Seriali | 1x 4-wire UART + 1 x Debug UART Optional CAN interface |
| Altre Interfacce | 1 x PCI Express x 1 lane SPI interface Watchdog 8x GPIO SM Bus I2C interface |
| Alimentazione | +5VDC and +5VSB (optional) |
| Sistema Operativo | Linux (Yocto) |
| Dimensioni | 40x70 mm (1.57” x 2.76”) |
| Operating Temperature | 0°C ÷ +60 °C (commercial temp.)* -30°C ÷ +85°C (Extended temp.)* *Measured at any point of SECO standard heastpreader for this product, during any and all times (including start-up). Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider application-specific cooling solutions for the final system to keep the heatspreader temperature in the range indicated. |
Visualizza tutte le specifiche
Visualizza meno specifiche
| Processore | i.MX8M Mini Solo-1x Cortex®-A53 cores up to 1.8GHz |
|---|---|
| Core | 1 |
| Memoria | Soldered on-board 1GB DDR4-2400 16-bit bus Memory |
| Scheda Grafica | Vivante GC320 2D accelerator + GCNanoUltra 3D accelerator OpenGL ES 2.0, OpenVG 1.1 support Embedded VPU able to offer: VP9, HEVC/H.265, AVC/H.264, VP8 HW Decoding AVC/H.264, VP8 HW encoding |
| Interfacce Video | Single/Dual Channel 18/24 bit LVDS interface or eDP interface Up to 1920 x 1080p |
| Memoria Di Massa | 8GB eMMC 5.1 drive on-board SD / MMC / SDIO interface Optional QSPI Flash for booting |
| Rete | Gigabit Ethernet interface Optional WiFi 802.11 a/b/g/n/ac +BT 5.0 NGFF module soldered on-board |
| Usb | 5x USB 2.0 Host ports |
| Audio | I2S Audio Interface |
| Porte Seriali | 1x 4-wire UART + 1 x Debug UART Optional CAN interface |
| Altre Interfacce | 1 x PCI Express x 1 lane SPI interface Watchdog 8x GPIO SM Bus I2C interface |
| Alimentazione | +5VDC and +5VSB (optional) |
| Sistema Operativo | Linux (Yocto) |
| Dimensioni | 40x70 mm (1.57” x 2.76”) |
| Operating Temperature | 0°C ÷ +60 °C (commercial temp.)* -30°C ÷ +85°C (Extended temp.)* *Measured at any point of SECO standard heastpreader for this product, during any and all times (including start-up). Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider application-specific cooling solutions for the final system to keep the heatspreader temperature in the range indicated. |
Visualizza tutte le specifiche
Visualizza meno specifiche
μQ7 con NXP i.MX8M Mini Solo, 1GB DDR4, 8GB eMMC, LVDS, CAN, QSPI - Ind.Temp. (ELECTRA - C72)
Part Number: QC72-5520-1101-I2
Part Number: QC72-5520-1101-I2
