UDOO KEY PRO
Usually ships in 2-4 days
The world's most flexible AI platform with On Chip Temperature System, 6-AXIS IMU Motion Sensors / Omnidirectional Digital Microphone.
Available
€54.00
excl. TAX/VAT/SHIPPING
| CPU | ESP32-DOWDQ6 processor, Dual Core Xtensa® 32-bit LX6 Microprocessor and RP2040 |
|---|---|
| Connectivity | Embedded Wi-Fi (802.11 b/g/n) + BT 4.2/BT LE module with PCB antenna |
| Memory | Internal 520KB SRAM + 16KB SRAM in RTC |
UDOO KEY PRO
| Processor | ESP32-DOWDQ6 processor, Dual Core Xtensa® 32-bit LX6 Microprocessor and RP2040 |
|---|---|
| Cores | 2 |
| Memory | Internal 520KB SRAM + 16KB SRAM in RTC |
| Mass Storage | 16MB SPI Flash (on ESP32) 8MB PSRAM (on ESP32) 8MB Flash (on RP2040) 264kB SRAM (on RP2040) |
| Networking | Embedded Wi-Fi (802.11 b/g/n) + BT 4.2/BT LE module with PCB antenna |
| Usb | USB 2.0 on Type-C connector for serial communication and programming of ESP32 or RP2040 |
| Other Interfaces | Interfaces on UEXT connector: +3.3V / GND 1x UART (from ESP32) 1x I2C (from ESP32) 1x SPI (from ESP32) On RP2040 header: 24x GPIOs |
| Integrated Sensors | On Chip Temperature System (RP2040) 6-AXIS IMU Motion Sensors / Omnidirectional Digital Microphone |
| Power Supply | +5VDC, USB Type-C connector |
| Operating System | FreeRTOS MicroPython Arduino |
| Dimensions | 130 x 40 x 10.9 mm |
| Operating Temperature | 0° to +60°C |
View all specs
View less specs
| Processor | ESP32-DOWDQ6 processor, Dual Core Xtensa® 32-bit LX6 Microprocessor and RP2040 |
|---|---|
| Cores | 2 |
| Memory | Internal 520KB SRAM + 16KB SRAM in RTC |
| Mass Storage | 16MB SPI Flash (on ESP32) 8MB PSRAM (on ESP32) 8MB Flash (on RP2040) 264kB SRAM (on RP2040) |
| Networking | Embedded Wi-Fi (802.11 b/g/n) + BT 4.2/BT LE module with PCB antenna |
| Usb | USB 2.0 on Type-C connector for serial communication and programming of ESP32 or RP2040 |
| Other Interfaces | Interfaces on UEXT connector: +3.3V / GND 1x UART (from ESP32) 1x I2C (from ESP32) 1x SPI (from ESP32) On RP2040 header: 24x GPIOs |
| Integrated Sensors | On Chip Temperature System (RP2040) 6-AXIS IMU Motion Sensors / Omnidirectional Digital Microphone |
| Power Supply | +5VDC, USB Type-C connector |
| Operating System | FreeRTOS MicroPython Arduino |
| Dimensions | 130 x 40 x 10.9 mm |
| Operating Temperature | 0° to +60°C |
View all specs
View less specs

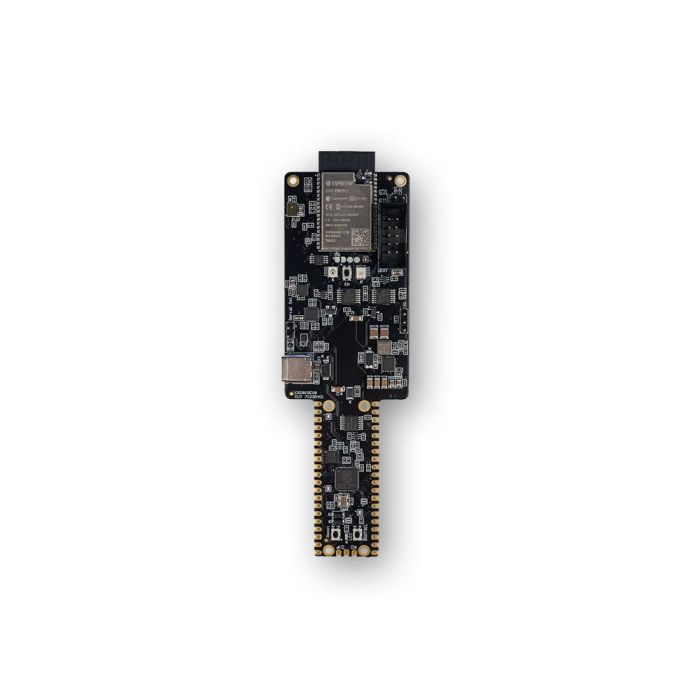

UDOO KEY is a fully programmable board combining Raspberry Pi RP2040 and ESP32 into a single powerful solution with On Chip Temperature System, 6-AXIS IMU Motion Sensors / Omnidirectional Digital Microphone. It allows you to use either RP2040, ESP32 or both to build any AI projects on your terms.
Compare with similar Products
-
UDOO KEY PROCpuESP32-DOWDQ6 processor, Dual Core Xtensa® 32-bit LX6 Microprocessor and RP2040GpuRamInternal 520KB SRAM + 16KB SRAM in RTC -
UDOO KEY BASICCpuESP32-DOWDQ6 processor, Dual Core Xtensa® 32-bit LX6 Microprocessor and RP2040GpuRamInternal 520KB SRAM + 16KB SRAM in RTC
