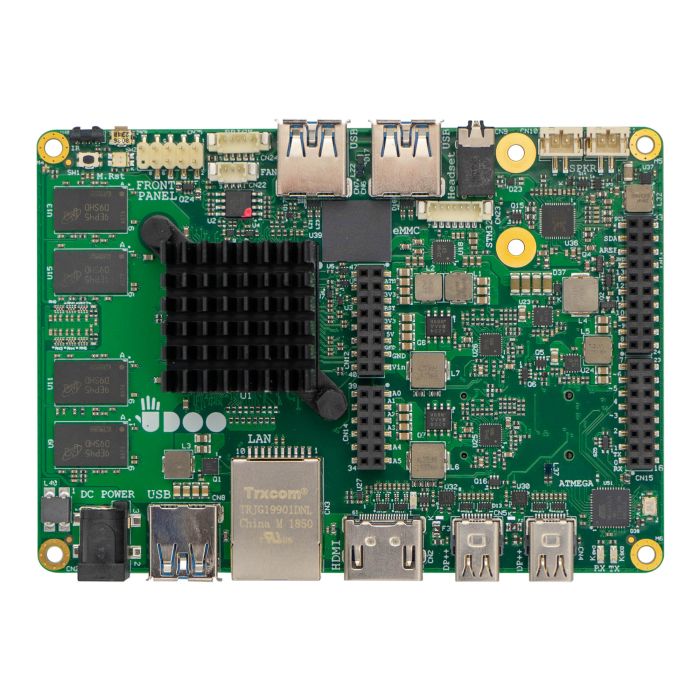

UDOO X86 ULTRA
$199.00
UDOO X86 ULTRA
Usually ships in 2-4 days
The most powerful X86 maker board ever and an Arduino™ 101-compatible platform, all embedded on the same board.
Available
Special Price
$199.00
Regular Price
$350.00
excl. TAX/VAT/SHIPPING
| CPU | CPU Intel Pentium N3710 2.56 GHZ |
|---|---|
| Graphics | Intel HD Graphics 405. Up to 700 MHz |
| Connectivity | 32GB eMMC storage |
| Memory | 8 GB DDR3L Dual Channel |
UDOO X86 ULTRA
| Processor | CPU Intel Pentium N3710 2.56 GHz |
|---|---|
| Cores | 4 |
| Memory | 8 GB DDR3L Dual Channel |
| Graphics | Intel HD Graphics 405 Up to 700 MHz 16 execution units |
| Video Interfaces | 1x HDMI 2x miniDP++ connectors |
| Mass Storage | 32GB eMMC storage Standard SATA connector M.2 Key B SSD slot Micro SD card slot |
| Networking | Gigabit Ethernet connector M.2 Key E slot for optional Wireless modules |
| Usb | 3 x USB 3.0 type-A sockets |
| Multimedia | HW Video decode: H.265/HEVC, H264, MPEG2, MVC, VC-1, WMV9, JPEG, VP8; HW Video encode: H.264, MVC, JPEG |
| Audio | HD audio codec ALC 283CG Microphone + Headphone combo connector Preamplified speaker output S/PDIF output |
| Other Interfaces | IR interface LPC - 2 x I2C - GPIOs - Touch Screen Management signals on expansion connector RTC Battery + Connector Included |
| Power Supply | DC IN Jack 12V 3A |
| Operating System | Windows 10, 8.1, 7 Any Linux Distribution for X86 platform Android |
| Dimensions | 120 mm x 85 mm - 4.72 inch x 3.35 inch |
| Microcontroller | Arduino 101 |
| Arduino Other Interfaces | 1 UART 1 x i2C 1 x SPI |
| Arduino Pinout | Arduino Leonardo-compatible and compatible with most arduino shields 5V compliant |
| Digital Pins | Up to 23 x digital I/O (7 PWM) |
| Analog Pins | 12 x Analog input |
View all specs
View less specs
| Processor | CPU Intel Pentium N3710 2.56 GHz |
|---|---|
| Cores | 4 |
| Memory | 8 GB DDR3L Dual Channel |
| Graphics | Intel HD Graphics 405 Up to 700 MHz 16 execution units |
| Video Interfaces | 1x HDMI 2x miniDP++ connectors |
| Mass Storage | 32GB eMMC storage Standard SATA connector M.2 Key B SSD slot Micro SD card slot |
| Networking | Gigabit Ethernet connector M.2 Key E slot for optional Wireless modules |
| Usb | 3 x USB 3.0 type-A sockets |
| Multimedia | HW Video decode: H.265/HEVC, H264, MPEG2, MVC, VC-1, WMV9, JPEG, VP8; HW Video encode: H.264, MVC, JPEG |
| Audio | HD audio codec ALC 283CG Microphone + Headphone combo connector Preamplified speaker output S/PDIF output |
| Other Interfaces | IR interface LPC - 2 x I2C - GPIOs - Touch Screen Management signals on expansion connector RTC Battery + Connector Included |
| Power Supply | DC IN Jack 12V 3A |
| Operating System | Windows 10, 8.1, 7 Any Linux Distribution for X86 platform Android |
| Dimensions | 120 mm x 85 mm - 4.72 inch x 3.35 inch |
| Microcontroller | Arduino 101 |
| Arduino Other Interfaces | 1 UART 1 x i2C 1 x SPI |
| Arduino Pinout | Arduino Leonardo-compatible and compatible with most arduino shields 5V compliant |
| Digital Pins | Up to 23 x digital I/O (7 PWM) |
| Analog Pins | 12 x Analog input |
View all specs
View less specs
UDOO X86 is the New PC: the most powerful x86 maker board ever and an Arduino™ 101-compatible platform, all embedded on the same board.
On UDOO X86 you can run all the software available for the PC world, from gaming to video streaming, from graphical editors to professional development platforms, plus all the software or the Arduino™ 101 world, including all the sketches, libraries and the official Arduino™ 101 IDE.
You won’t ever worry about lack of drivers or stuff like that. This is a true next-generation computer.
It is based on Quad Core 64-bit new-generation x86 processors made by Intel®, designed for the PC domain. Prodigious processors concentrated in 14 nm, with an amount of energy consumption of 5 or 6 Watt.
The board can be powered by a DC-jack with a standard 5.5mm/2.1mm barrel jack, internal positive, Voltage 12V ± 5%. This is not included. Alternatively, power can be provided though the VIN pin located on the header.
Screw/Spacers for M.2 SSD and Wifi/BT already included.
List of Components:
- 1x UDOO X86 ULTRA
- 1x M.2 Key B (2260) kit:
1x flat head screw M3x12mm
1x round spacer 6mm
1x washer 0.5 mm
1x nut M3
- 1x M.2 Key E (2230) kit:
1x flat head screw M3x8mm
1x round spacer 2mm
1x washer 0.5 mm
1x nut M3
You can check out our Kickstarter Campaign.
On UDOO X86 you can run all the software available for the PC world, from gaming to video streaming, from graphical editors to professional development platforms, plus all the software or the Arduino™ 101 world, including all the sketches, libraries and the official Arduino™ 101 IDE.
You won’t ever worry about lack of drivers or stuff like that. This is a true next-generation computer.
It is based on Quad Core 64-bit new-generation x86 processors made by Intel®, designed for the PC domain. Prodigious processors concentrated in 14 nm, with an amount of energy consumption of 5 or 6 Watt.
The board can be powered by a DC-jack with a standard 5.5mm/2.1mm barrel jack, internal positive, Voltage 12V ± 5%. This is not included. Alternatively, power can be provided though the VIN pin located on the header.
Screw/Spacers for M.2 SSD and Wifi/BT already included.
List of Components:
- 1x UDOO X86 ULTRA
- 1x M.2 Key B (2260) kit:
1x flat head screw M3x12mm
1x round spacer 6mm
1x washer 0.5 mm
1x nut M3
- 1x M.2 Key E (2230) kit:
1x flat head screw M3x8mm
1x round spacer 2mm
1x washer 0.5 mm
1x nut M3
You can check out our Kickstarter Campaign.
