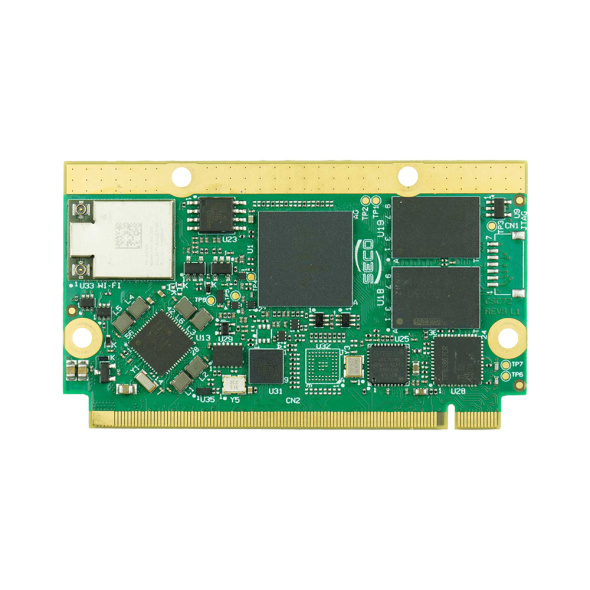

SOM-uQ7-MX8M-MINI-NANO SOLO 1GB

Estimated delivery time: 2-5 working days after payment confirmation

Total:

Item(s) selected:

SOM-uQ7-MX8M-MINI-NANO SOLO 1GB

Usually ships in 2-4 days

With NXP i.MX8M Mini Solo, 1GB DDR4, 8GB eMMC.

Available

Quantity:

$113.10 excl. TAX/VAT/SHIPPING

More Information
CPU	i.MX8M Mini Solo-1x Cortex®-A53 cores up to 1.8GHz
Graphics	GC320 2D accelerator + GCNanoUltra 3D accelerator
Connectivity	Gigabit Ethernet interface Optional WiFi 802.11 a/b/g/n/ac +BT 5.0 NGFF module soldered on-board
Memory	Soldered on-board 1GB DDR4-2400 16-bit bus Memory

SOM-uQ7-MX8M-MINI-NANO SOLO 1GB

More Information
Processor	i.MX8M Mini Solo-1x Cortex®-A53 cores up to 1.8GHz
Cores	1
Memory	Soldered on-board 1GB DDR4-2400 16-bit bus Memory
Graphics	Vivante GC320 2D accelerator + GCNanoUltra 3D accelerator OpenGL ES 2.0, OpenVG 1.1 support Embedded VPU able to offer: VP9, HEVC/H.265, AVC/H.264, VP8 HW Decoding AVC/H.264, VP8 HW encoding
Video Interfaces	Single/Dual Channel 18/24 bit LVDS interface or eDP interface Up to 1920 x 1080p
Mass Storage	8GB eMMC 5.1 drive on-board SD / MMC / SDIO interface Optional QSPI Flash for booting
Networking	Gigabit Ethernet interface Optional WiFi 802.11 a/b/g/n/ac +BT 5.0 NGFF module soldered on-board
Usb	5x USB 2.0 Host ports
Audio	I2S Audio Interface
Serial Ports	1x 4-wire UART + 1 x Debug UART Optional CAN interface
Other Interfaces	1 x PCI Express x 1 lane SPI interface Watchdog 8x GPIO SM Bus I2C interface
Power Supply	+5VDC and +5VSB (optional)
Operating System	Linux (Yocto)
Dimensions	40x70 mm (1.57” x 2.76”)
Operating Temperature	0°C ÷ +60 °C (commercial temp.)* -30°C ÷ +85°C (Extended temp.)* *Measured at any point of SECO standard heastpreader for this product, during any and all times (including start-up). Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider application-specific cooling solutions for the final system to keep the heatspreader temperature in the range indicated.

View all specs

View less specs

More Information
Processor	i.MX8M Mini Solo-1x Cortex®-A53 cores up to 1.8GHz
Cores	1
Memory	Soldered on-board 1GB DDR4-2400 16-bit bus Memory
Graphics	Vivante GC320 2D accelerator + GCNanoUltra 3D accelerator OpenGL ES 2.0, OpenVG 1.1 support Embedded VPU able to offer: VP9, HEVC/H.265, AVC/H.264, VP8 HW Decoding AVC/H.264, VP8 HW encoding
Video Interfaces	Single/Dual Channel 18/24 bit LVDS interface or eDP interface Up to 1920 x 1080p
Mass Storage	8GB eMMC 5.1 drive on-board SD / MMC / SDIO interface Optional QSPI Flash for booting
Networking	Gigabit Ethernet interface Optional WiFi 802.11 a/b/g/n/ac +BT 5.0 NGFF module soldered on-board
Usb	5x USB 2.0 Host ports
Audio	I2S Audio Interface
Serial Ports	1x 4-wire UART + 1 x Debug UART Optional CAN interface
Other Interfaces	1 x PCI Express x 1 lane SPI interface Watchdog 8x GPIO SM Bus I2C interface
Power Supply	+5VDC and +5VSB (optional)
Operating System	Linux (Yocto)
Dimensions	40x70 mm (1.57” x 2.76”)
Operating Temperature	0°C ÷ +60 °C (commercial temp.)* -30°C ÷ +85°C (Extended temp.)* *Measured at any point of SECO standard heastpreader for this product, during any and all times (including start-up). Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider application-specific cooling solutions for the final system to keep the heatspreader temperature in the range indicated.
