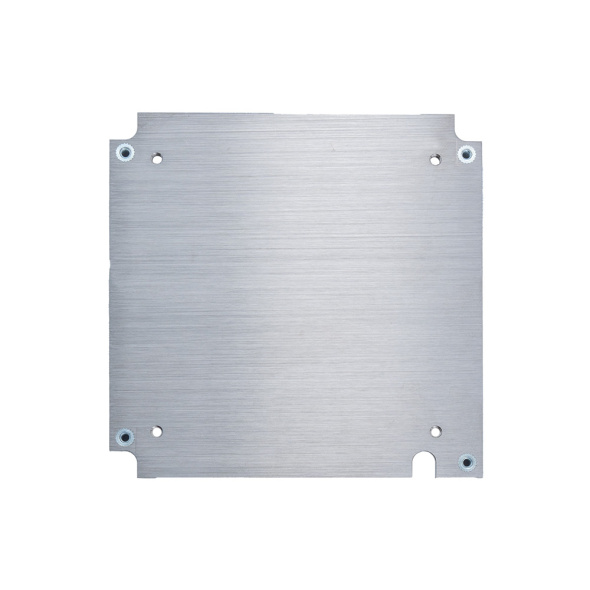

SOM-COMe-CT6-V2000 HEAT SPREADER
$33.10
Heat Spreader Passive.
SOM-COMe-CT6-V2000 HEAT SINK
$56.05
Heat Sink Active.
DEV-KIT-COMe-T6
$1,393.50
Not available
Compatible with both x86 and Arm COM Express® Type 6 modules.
CARRIER-COMe-T6-C30
$288.35
Carrier Board for COM Express™ Type 6 Modules.
CABLE KIT CARRIER C30
$52.45
Cables Kit for CCOMe-C30.

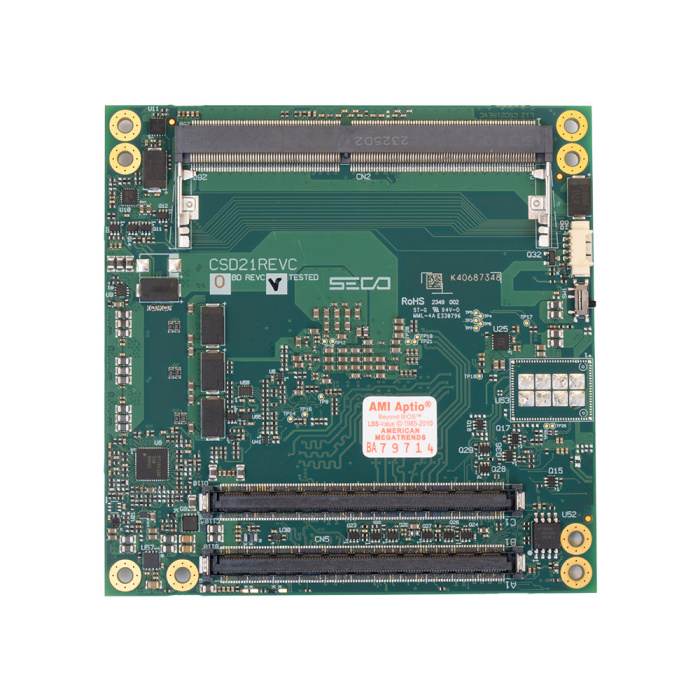

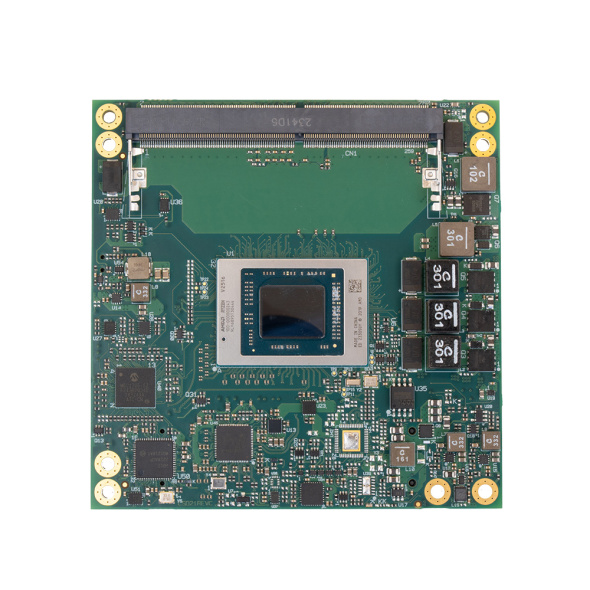

SOM-COMe-CT6-V2516
$609.55
SOM-COMe-CT6-V2516
Usually ships in 2-4 days
With AMD V2516 (6C/12T @2.1GHz, Boost up to 3.95GHz, Radeon Graphics w/ 6 CU, TDP 10-25W).
Available
$609.55
excl. TAX/VAT/SHIPPING
| CPU | AMD Ryzen™ Embedded V2516 with AMD Radeon™ Graphics with 6 CU, Six Core Dual Thread @ 2.1GHz (3.95 Boost), TDP 10-25W |
|---|---|
| Graphics | Integrated AMD Radeon™ GPU with 6 Compute Units |
| Connectivity | Gigabit Ethernet interface with Intel® I21x GbE Controller Optional M.2 1216 WiFi 802.11ac and BTLE 5.0 on-board |
| Memory | Two DDR4 SO-DIMM Slots supporting DDR4-3200, ECC and non- ECC modules. Memory, up to 64GB |
SOM-COMe-CT6-V2516
| Processor | AMD Ryzen™ Embedded V2516 with AMD Radeon™ Graphics with 6 CU, Six Core Dual Thread @ 2.1GHz (3.95 Boost), TDP 10-25W |
|---|---|
| Cores | 6 |
| Memory | Two DDR4 SO-DIMM Slots supporting DDR4-3200, ECC and non- ECC modules. Memory, up to 64GB |
| Graphics | Integrated AMD Radeon™ GPU with 6 Compute Units |
| Video Interfaces | Up to 3 x Digital Display Interfaces (DDIs), supporting DVI, DP 1.4, HDMI 2.1 1 x eDP 1.3 or Single/Dual-Channel 18-/24-bit LVDS interface eDP, DP up to 4096x2160 @60Hz 10b with DSC 1.2 (HBR3) HDMI up to 4096x2160 @ 60Hz LVDS up to 1920x1200 @ 60Hz |
| Mass Storage | 2 x S-ATA Gen3 Channels |
| Networking | Gigabit Ethernet interface with Intel® I21x GbE Controller Optional M.2 1216 WiFi 802.11ac and BTLE 5.0 on-board |
| Usb | 1 x SuperSpeed USB 10Gbps Host ports 3 x SuperSpeed USB 5Gbps Host ports 8 x 2.0 Host ports |
| Audio | HD Audio interface |
| Serial Ports | 2 x UARTs |
| Other Interfaces | 8 x PCI-e x1 Gen3 lanes PCI-express Graphics (PEG) x8 Gen3 SPI, I2C, SM Bus, Thermal Management, FAN management LPC bus Optional TPM 2.0 on-board LID#/SLEEP#/PWRBTN#, Watchdog 4 x GPI, 4 x GPO |
| Power Supply | 8VDC..20VDC, +5VSB (optional), +3VRTC (optional) |
| Operating System | Microsoft® Windows 10 Linux |
| Dimensions | 95 x 95 mm (COM Express® Compact Form factor, Type 6 pinout) |
| Operating Temperature | 0°C ÷ +60°C (Commercial version)* * Measured at any point of SECO standard heatspreader for this product, during any and all times (including start-up). Actual temperature will depend on the application, enclosure, and/or environment. Each customer must consider application-specific cooling solutions for the final system to keep the heatspreader temperature in the range indicated. |
View all specs
View less specs
| Processor | AMD Ryzen™ Embedded V2516 with AMD Radeon™ Graphics with 6 CU, Six Core Dual Thread @ 2.1GHz (3.95 Boost), TDP 10-25W |
|---|---|
| Cores | 6 |
| Memory | Two DDR4 SO-DIMM Slots supporting DDR4-3200, ECC and non- ECC modules. Memory, up to 64GB |
| Graphics | Integrated AMD Radeon™ GPU with 6 Compute Units |
| Video Interfaces | Up to 3 x Digital Display Interfaces (DDIs), supporting DVI, DP 1.4, HDMI 2.1 1 x eDP 1.3 or Single/Dual-Channel 18-/24-bit LVDS interface eDP, DP up to 4096x2160 @60Hz 10b with DSC 1.2 (HBR3) HDMI up to 4096x2160 @ 60Hz LVDS up to 1920x1200 @ 60Hz |
| Mass Storage | 2 x S-ATA Gen3 Channels |
| Networking | Gigabit Ethernet interface with Intel® I21x GbE Controller Optional M.2 1216 WiFi 802.11ac and BTLE 5.0 on-board |
| Usb | 1 x SuperSpeed USB 10Gbps Host ports 3 x SuperSpeed USB 5Gbps Host ports 8 x 2.0 Host ports |
| Audio | HD Audio interface |
| Serial Ports | 2 x UARTs |
| Other Interfaces | 8 x PCI-e x1 Gen3 lanes PCI-express Graphics (PEG) x8 Gen3 SPI, I2C, SM Bus, Thermal Management, FAN management LPC bus Optional TPM 2.0 on-board LID#/SLEEP#/PWRBTN#, Watchdog 4 x GPI, 4 x GPO |
| Power Supply | 8VDC..20VDC, +5VSB (optional), +3VRTC (optional) |
| Operating System | Microsoft® Windows 10 Linux |
| Dimensions | 95 x 95 mm (COM Express® Compact Form factor, Type 6 pinout) |
| Operating Temperature | 0°C ÷ +60°C (Commercial version)* * Measured at any point of SECO standard heatspreader for this product, during any and all times (including start-up). Actual temperature will depend on the application, enclosure, and/or environment. Each customer must consider application-specific cooling solutions for the final system to keep the heatspreader temperature in the range indicated. |
View all specs
View less specs
COMe T6 Compact OPHELIA with AMD V2516 (6C/12T @2.1GHz, Boost up to 3.95GHz, Radeon Graphics w/ 6 CU, TDP 10-25W), 4w fan support. (OPHELIA - D21)
Part Number: MD21-1010-1122-C2
Part Number: MD21-1010-1122-C2
|
|
Compare with similar Products
-
SOM-COMe-CT6-V2516CpuAMD Ryzen™ Embedded V2516 with AMD Radeon™ Graphics with 6 CU, Six Core Dual Thread @ 2.1GHz (3.95 Boost), TDP 10-25WGpuIntegrated AMD Radeon™ GPU with 6 Compute UnitsRamTwo DDR4 SO-DIMM Slots supporting DDR4-3200, ECC and non- ECC modules. Memory, up to 64GB -
SOM-COMe-CT6-V2748CpuAMD Ryzen™ Embedded V2748 with AMD Radeon™ Graphics with 7CU, Eight Core Dual Thread @ 2.9GHz (4.15 Boost), TDP 35-54WGpuIntegrated AMD Radeon™ GPU with 7 Compute UnitsRamTwo DDR4 SO-DIMM Slots supporting DDR4-3200, ECC and non- ECC modules. Memory, up to 64GB
