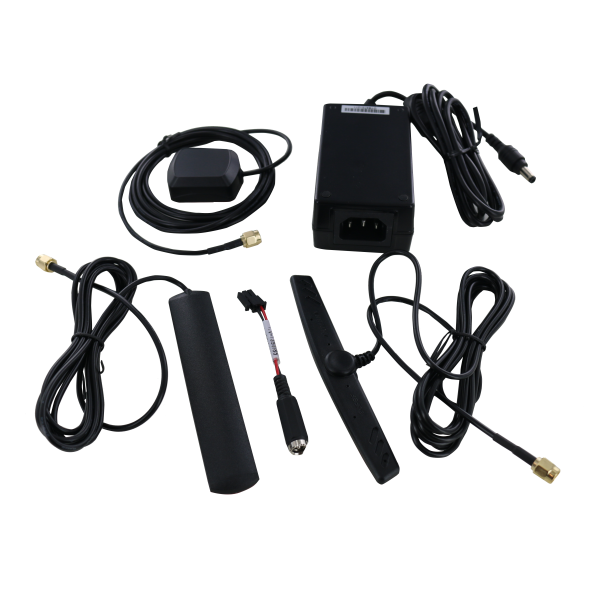

DEV KIT EASY EDGE
$48.05
Easy Edge System WiFi/LTE Development kit

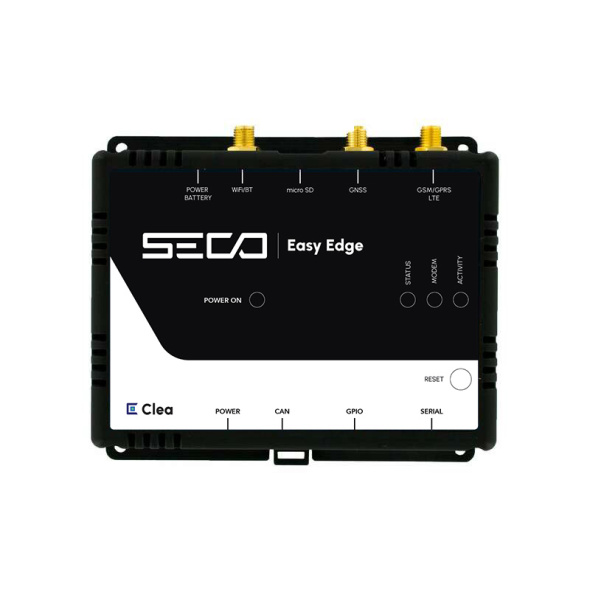

EASY EDGE
$127.72
EASY EDGE
Usually ships in 2-4 days
IoT Sensor to Cloud
Not available
$127.72
excl. TAX/VAT/SHIPPING
| CPU | ESP32-D0WD-V3 processor |
|---|---|
| Connectivity | Programmable expansion connector, CAN Port, dedicated RS-232 / TTL UART |
| Memory | Internal 520KB SRAM + 16KB SRAM in RTC |
EASY EDGE
| Processor | ESP32-D0WD-V3 Dual Core Xtensa® 32-bit LX6 Microprocessor |
|---|---|
| Cores | 2 |
| Memory | Internal 520KB SRAM + 16KB SRAM in RTC |
| Mass Storage | 16MB SPI Flash 8MB PSRAM microSD slot |
| Networking | Embedded WiFi (802.11 b/g/n) + BT 4.2/BT LE module Optional Modem with GNSS functionality: Global-Band LTE CAT-M / NB-IoT modem, SIMCOM SIM7080G |
| Serial Ports | RS-232 / TTL UART (jumper selectable) port on 6-pin dedicated connector |
| Other Interfaces | Accelerometer Optional Trusted Secure Element Expansion 8-pin connector, able to manage: • Up to 3x Digital GPIOS, 2 of them managed also in UltraLow Power States too • Up to 2x analog Inputs • I2C interface (fixed interface) • Additional 2-Wire UART • Second I2C interface • Up to 2x PWM 1x Reset button eSIM or microSIM slot (factory options) SMA connectors for WiFi/BT, Modem and GNNS (antennas not provided) |
| Leds | White LED for Power On Signaling Green LED for Modem Activity Signaling Blue LED for Edgehog network connection signaling Yellow LED for WiFi/BT activity or other signaling |
| Power Supply | 2-pin micro-Fit Connector 9VDC .. +24VDC Optional 2000mAh rechargeable battery, LIR18650 |
| Dimensions | 110 x 91 x31 mm (LxWxD) |
| Operating Temperature | 0°÷+45°C |
View all specs
View less specs
-
[Datasheet] Easy Edge Rel 1.2: [Datasheet] Easy Edge Rel 1.2
| Processor | ESP32-D0WD-V3 Dual Core Xtensa® 32-bit LX6 Microprocessor |
|---|---|
| Cores | 2 |
| Memory | Internal 520KB SRAM + 16KB SRAM in RTC |
| Mass Storage | 16MB SPI Flash 8MB PSRAM microSD slot |
| Networking | Embedded WiFi (802.11 b/g/n) + BT 4.2/BT LE module Optional Modem with GNSS functionality: Global-Band LTE CAT-M / NB-IoT modem, SIMCOM SIM7080G |
| Serial Ports | RS-232 / TTL UART (jumper selectable) port on 6-pin dedicated connector |
| Other Interfaces | Accelerometer Optional Trusted Secure Element Expansion 8-pin connector, able to manage: • Up to 3x Digital GPIOS, 2 of them managed also in UltraLow Power States too • Up to 2x analog Inputs • I2C interface (fixed interface) • Additional 2-Wire UART • Second I2C interface • Up to 2x PWM 1x Reset button eSIM or microSIM slot (factory options) SMA connectors for WiFi/BT, Modem and GNNS (antennas not provided) |
| Leds | White LED for Power On Signaling Green LED for Modem Activity Signaling Blue LED for Edgehog network connection signaling Yellow LED for WiFi/BT activity or other signaling |
| Power Supply | 2-pin micro-Fit Connector 9VDC .. +24VDC Optional 2000mAh rechargeable battery, LIR18650 |
| Dimensions | 110 x 91 x31 mm (LxWxD) |
| Operating Temperature | 0°÷+45°C |
View all specs
View less specs
-
[Datasheet] Easy Edge Rel 1.2: [Datasheet] Easy Edge Rel 1.2
With ESP32-WROVER-IE, WiFi/BT, SIM7080G Global-Band LTE CAT-M / NB-IoT 4G modem, Secure Element, accelerometer, rechargeable battery
Part Number: SYS-D47-IOT-0132-0121-C1
Part Number: SYS-D47-IOT-0132-0121-C1
|
|
