SBC-pITX-EHL Heat Spreader (PASSIVE) for Atom x6xxxx CPUs - Packaged
SBC-pITX-EHL X6425E
$551.70
SBC-pITX-EHL X6425E
Usually ships in 2-4 days
With the Intel® Atom® x6425E Quad Core @2.0GHz w/ IBECC 16GB RAM, 64GB eMMC
Not available
$551.70
excl. TAX/VAT/SHIPPING
| CPU | Intel® Atom® x6425E Quad Core @2.0GHz (3GHz Turbo) 12W TDP w/ IBECC and IHS - Industrial. |
|---|---|
| Graphics | Integrated Intel® Gen11 UHD Graphics controller, up to 32 Execution Units |
| Connectivity | 2x Gigabit Ethernet PHY with precision clock synchronization and synchronous Ethernet clock output for IEEE 1588 M.2 WWAN Slot for Modems (Socket 2 Key B Type 2242/3042) coupled to on-board Nano SIM slot. ** M.2 WLAN Connectivity Slot for Wi-Fi/BT (Socket 1 Key E Type 2230) |
| Memory | Soldered down 16GB LPDDR4-3200 memory |

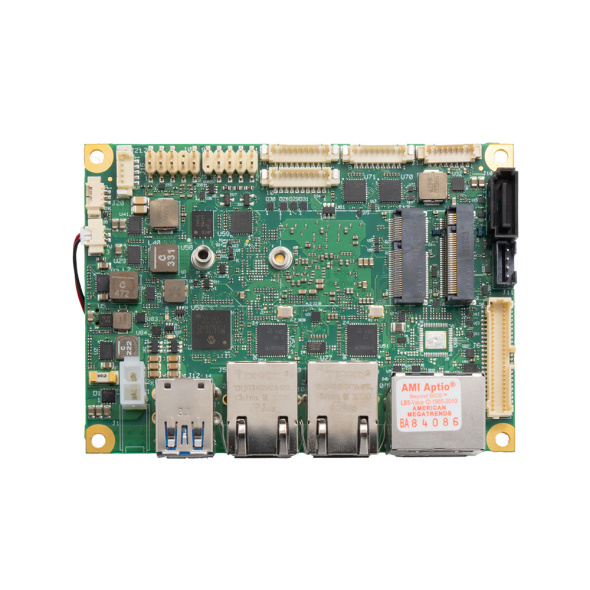

SBC-pITX-EHL X6425E
| Processor | Intel® Atom® x6425E Quad Core @2.0GHz (3GHz Turbo) 12W TDP w/ IBECC and IHS - Industrial. |
|---|---|
| Cores | 4 |
| Memory | Soldered down 16GB LPDDR4-3200 memory with IBECC supported only with Atom™ industrial SoCs Speed: 3733MT/s dual rank |
| Graphics | Up to 3 independent displays Integrated Intel® Gen11 UHD Graphics controller with up to 32 EU 4K HW decoding and encoding of HEVC (H.265), H.264, VP8, VP9, WMV9/VC1 (decoding only) |
| Video Interfaces | 2x Multimode DisplayPort 1.4, on Dual DP++ Connector 1x eDP interface Up to 4096x2160 @60Hz |
| Mass Storage | 64GB eMMC 5.1 drive soldered on-board M.2 SATA SSD slot (Socket 2 Key B Type 2242/3042).** 1x SATA Gen3 7 pins M connector |
| Networking | 2x Gigabit Ethernet PHY with precision clock synchronization and synchronous Ethernet clock output for IEEE 1588 M.2 WWAN Slot for Modems (Socket 2 Key B Type 2242/3042) coupled to on-board Nano SIM slot. ** M.2 WLAN Connectivity Slot for Wi-Fi/BT (Socket 1 Key E Type 2230) ** SATA SSD and WWAN functionalities share the same slot and are therefore mutually exclusive. |
| Usb | Dual SuperSpeed USB 10Gbps Standard-A connector Dual USB 2.0 pin header |
| Audio | HD Audio codec / Cirrus Logic CS4207 Mic In, Line Out and S/PDIF Out, on pin header |
| Serial Ports | 2x RS-232/RS-422/RS-485 UARTs (software configurable) on pin header |
| Other Interfaces | 8x GPIOs, I2C, SPI connectors 2x CAN connector Fan connector RST_BTN#, PWR_BTN# and activity LED signals on pin header TPM 2.0 on-board |
| Power Supply | +12VDC Cabled coin cell battery for RTC |
| Operating System | Microsoft® Windows 10 IoT Enterprise Linux Yocto |
| Dimensions | 100 x 72 mm (3,93” x 2,83”) |
| Operating Temperature | 0°C - +60°C (Commercial version) * -40°C - +85°C (Industrial version) * * Measured at any point of SECO standard heatspreader for this product, during any and all times (including start-up). Actual temperature will depend on the application, enclosure, and/or environment. Each customer must consider application-specific cooling solutions for the final system to keep the heatspreader temperature in the range indicated. |
View all specs
View less specs
| Processor | Intel® Atom® x6425E Quad Core @2.0GHz (3GHz Turbo) 12W TDP w/ IBECC and IHS - Industrial. |
|---|---|
| Cores | 4 |
| Memory | Soldered down 16GB LPDDR4-3200 memory with IBECC supported only with Atom™ industrial SoCs Speed: 3733MT/s dual rank |
| Graphics | Up to 3 independent displays Integrated Intel® Gen11 UHD Graphics controller with up to 32 EU 4K HW decoding and encoding of HEVC (H.265), H.264, VP8, VP9, WMV9/VC1 (decoding only) |
| Video Interfaces | 2x Multimode DisplayPort 1.4, on Dual DP++ Connector 1x eDP interface Up to 4096x2160 @60Hz |
| Mass Storage | 64GB eMMC 5.1 drive soldered on-board M.2 SATA SSD slot (Socket 2 Key B Type 2242/3042).** 1x SATA Gen3 7 pins M connector |
| Networking | 2x Gigabit Ethernet PHY with precision clock synchronization and synchronous Ethernet clock output for IEEE 1588 M.2 WWAN Slot for Modems (Socket 2 Key B Type 2242/3042) coupled to on-board Nano SIM slot. ** M.2 WLAN Connectivity Slot for Wi-Fi/BT (Socket 1 Key E Type 2230) ** SATA SSD and WWAN functionalities share the same slot and are therefore mutually exclusive. |
| Usb | Dual SuperSpeed USB 10Gbps Standard-A connector Dual USB 2.0 pin header |
| Audio | HD Audio codec / Cirrus Logic CS4207 Mic In, Line Out and S/PDIF Out, on pin header |
| Serial Ports | 2x RS-232/RS-422/RS-485 UARTs (software configurable) on pin header |
| Other Interfaces | 8x GPIOs, I2C, SPI connectors 2x CAN connector Fan connector RST_BTN#, PWR_BTN# and activity LED signals on pin header TPM 2.0 on-board |
| Power Supply | +12VDC Cabled coin cell battery for RTC |
| Operating System | Microsoft® Windows 10 IoT Enterprise Linux Yocto |
| Dimensions | 100 x 72 mm (3,93” x 2,83”) |
| Operating Temperature | 0°C - +60°C (Commercial version) * -40°C - +85°C (Industrial version) * * Measured at any point of SECO standard heatspreader for this product, during any and all times (including start-up). Actual temperature will depend on the application, enclosure, and/or environment. Each customer must consider application-specific cooling solutions for the final system to keep the heatspreader temperature in the range indicated. |
View all specs
View less specs

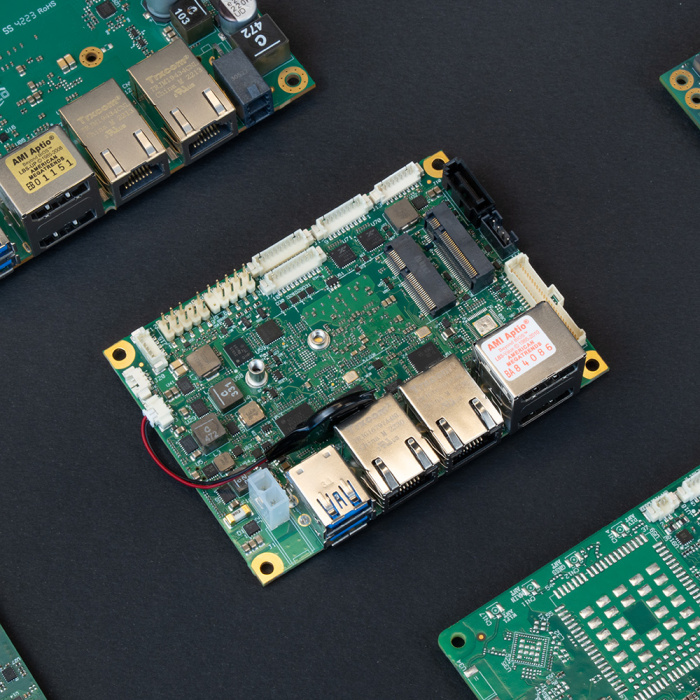

Pico-ITX SBC with the Intel® Atom® x6425E Quad Core @2.0GHz (3GHz Turbo) 12W TDP w/ IBECC 16GB RAM, 64GB eMMC. (ICARUS - D63)
Part Number: SD63-7641-1322-I4
|
|
