SOM-SMARC-EHL J6426 HEAT SINK
$14.85
Heat Sink passive.

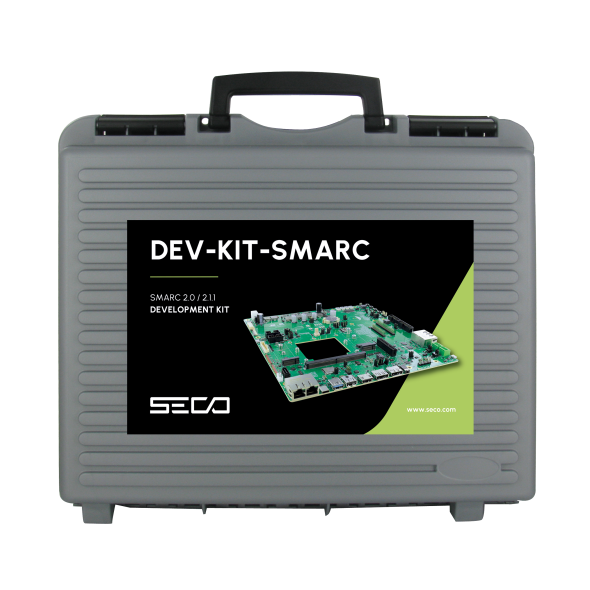

DEV-KIT-SMARC
$820.00
Not available
2.0 / 2.1 / 2.1.1 Development Kit.

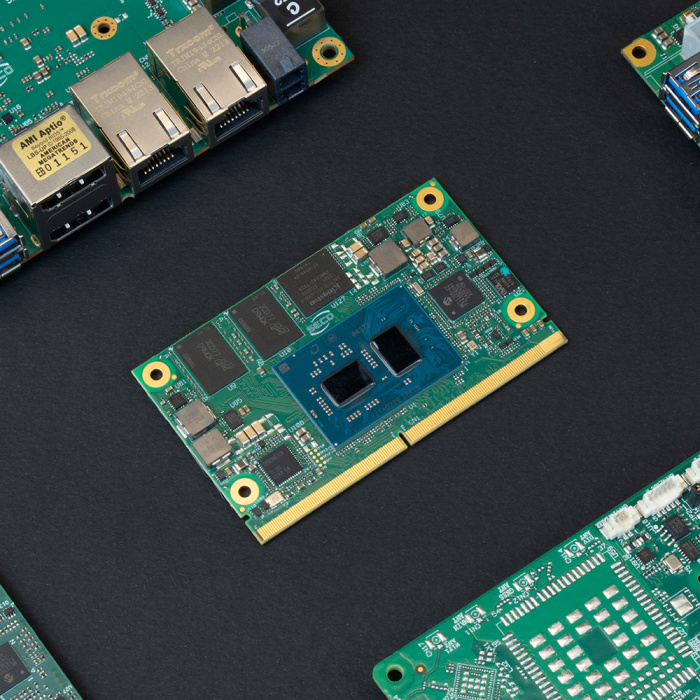

SOM-SMARC-EHL J6426
$1,075.10

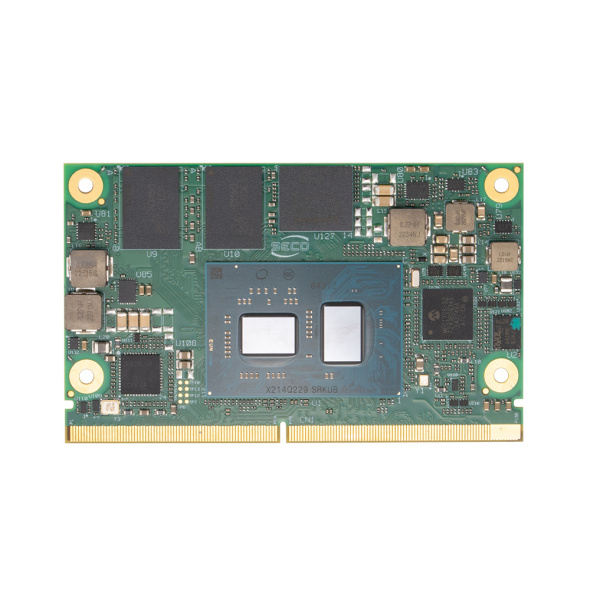

SOM-SMARC-EHL J6426
Usually ships in 2-4 days
With Intel® Pentium® J6426 Quad Core @2GHz, 10W TDP, 8GB RAM, 64GB eMMC.
Available
$1,075.10
excl. TAX/VAT/SHIPPING
| CPU | Intel® Pentium® J6426 Quad Core @2GHz (3.0GHZ Turbo) 10W TDP - Comm. Temp. Range |
|---|---|
| Graphics | Integrated Gen11 UHD Graphics controller supporting 3 independent displays |
| Connectivity | 2x Gigabit Ethernet PHY with precision clock synchronization and synchronous Ethernet clock output for IEEE 1588 (Safety Related – Black channel) Optional SERDES (SGMII) Interface for additional third Gigabit Ethernet (factory option, alternative to fourth PCI-e lane) |
| Memory | Quad Channel 8GB LPDDR4x Soldered Down with IBECC |
SOM-SMARC-EHL J6426
| Processor | Intel® Pentium® J6426 Quad Core @2GHz (3.0GHZ Turbo) 10W TDP - Comm. Temp. Range |
|---|---|
| Cores | 4 |
| Memory | Quad Channel 8GB LPDDR4x Soldered Down with IBECC Speed: 4267MT/s single rank |
| Graphics | Up to 3 independent displays Integrated Gen11 UHD Graphics controller with up to 32 EU 4K HW decoding and encoding of HEVC (H.265), H.264, VP8/VP9, WMV9/VC1 (decoding only) DirectX 12.1, OpenGL ES 3.1, OpenGL 4.5, OpenCL™ 1.2, Vulkan 1.0 |
| Video Interfaces | eDP 1.3 or Dual Channel 18/24bit LVDS interface (factory options) 2 x DP++ 1.4 or 1x DP++ 1.4 and 1x HDMI 1.4 interfaces Up to 4096x2160 @60Hz |
| Mass Storage | 1 x external S-ATA Gen3 Channel SDIO interface 64GB eMMC 5.1 drive soldered on-board (Safety Related) |
| Networking | 2x Gigabit Ethernet PHY with precision clock synchronization and synchronous Ethernet clock output for IEEE 1588 (Safety Related – Black channel) Optional SERDES (SGMII) Interface for additional third Gigabit Ethernet (factory option, alternative to fourth PCI-e lane) |
| Usb | 6 x USB 2.0 Host Ports 2 x USB 3.1 Gen2 Ports |
| Audio | HD Audio interface |
| Serial Ports | 2 x HS-UARTs (Safety Related) 2 x UARTs |
| Other Interfaces | Up to 4 x PCI-e Gen3 Lanes SM Bus Power Management Signals I2C Bus 1x SPI interface for boot 1x General Purpose SPI or eSPI (Factory Alternatives) |
| Power Supply | +5VDC and +3.3V_RTC |
| Operating System | Microsoft® Windows 10 Enterprise (64 bit) Linux Yocto 64-bit |
| Dimensions | 50 x 82 mm |
| Operating Temperature | -40°C ÷ +85°C (Industrial version)* *Measured at any point of SECO standard heatspreader for this product, during any and all times (including start-up). Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider applicationspecific cooling solutions for the final system to keep the heatspreader temperature in the range indicated. |
View all specs
View less specs
| Processor | Intel® Pentium® J6426 Quad Core @2GHz (3.0GHZ Turbo) 10W TDP - Comm. Temp. Range |
|---|---|
| Cores | 4 |
| Memory | Quad Channel 8GB LPDDR4x Soldered Down with IBECC Speed: 4267MT/s single rank |
| Graphics | Up to 3 independent displays Integrated Gen11 UHD Graphics controller with up to 32 EU 4K HW decoding and encoding of HEVC (H.265), H.264, VP8/VP9, WMV9/VC1 (decoding only) DirectX 12.1, OpenGL ES 3.1, OpenGL 4.5, OpenCL™ 1.2, Vulkan 1.0 |
| Video Interfaces | eDP 1.3 or Dual Channel 18/24bit LVDS interface (factory options) 2 x DP++ 1.4 or 1x DP++ 1.4 and 1x HDMI 1.4 interfaces Up to 4096x2160 @60Hz |
| Mass Storage | 1 x external S-ATA Gen3 Channel SDIO interface 64GB eMMC 5.1 drive soldered on-board (Safety Related) |
| Networking | 2x Gigabit Ethernet PHY with precision clock synchronization and synchronous Ethernet clock output for IEEE 1588 (Safety Related – Black channel) Optional SERDES (SGMII) Interface for additional third Gigabit Ethernet (factory option, alternative to fourth PCI-e lane) |
| Usb | 6 x USB 2.0 Host Ports 2 x USB 3.1 Gen2 Ports |
| Audio | HD Audio interface |
| Serial Ports | 2 x HS-UARTs (Safety Related) 2 x UARTs |
| Other Interfaces | Up to 4 x PCI-e Gen3 Lanes SM Bus Power Management Signals I2C Bus 1x SPI interface for boot 1x General Purpose SPI or eSPI (Factory Alternatives) |
| Power Supply | +5VDC and +3.3V_RTC |
| Operating System | Microsoft® Windows 10 Enterprise (64 bit) Linux Yocto 64-bit |
| Dimensions | 50 x 82 mm |
| Operating Temperature | -40°C ÷ +85°C (Industrial version)* *Measured at any point of SECO standard heatspreader for this product, during any and all times (including start-up). Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider applicationspecific cooling solutions for the final system to keep the heatspreader temperature in the range indicated. |
View all specs
View less specs
SMARC® w/Intel® Pentium® J6426 Quad Core @2GHz (3.0GHZ Turbo) 10W TDP, 8GB RAM, 64GB eMMC. (HALLEY - C93)
Part Number: RC93-M441-4021-C4
Part Number: RC93-M441-4021-C4
|
|
