SBC-3.5-MX8M-MINI HEAT SINK
11,20 €
Heat Sink passivo.
SBC-3.5-MX8M-MINI QUAD 2GB
169,60 €
SBC-3.5-MX8M-MINI QUAD 2GB
Solitamente spedito in 2-4 giorni
Con NXP i.MX 8M Mini Quad Processor.
Disponibile
169,60 €
escl. IVA/SPEDIZIONE
| CPU | i.MX8M Mini Quad 4x Cortex®-A53 cores up to 1.8GHz |
|---|---|
| Graphics | GC320 2D accelerator + GCNanoUltra 3D accelerator Embedded VPU (not for Lite processors), able to offer: VP9, HEVC/H.265, AVC/H.264, VP8 HW Decoding AVC/H.264, VP8 HW encoding OpenGL ES 2.0, OpenVG 1.1 support |
| Connectivity | 2x GbEthernet interfaces (1 optional) Optional shielded ultra-small dual Band WiFi 802.11 a/b/g/n/ac with BT 5.0 module onboard Optional soldered on-board LTE Cat 4 Modem with SIM slot or Telenor eSIM with 5MB Bundle |
| Memory | Soldered-down 2GB LPDDR4 32-bit interface |
SBC-3.5-MX8M-MINI QUAD 2GB
| Processore | i.MX8M Mini Quad 4x Cortex®-A53 cores up to 1.8GHz |
|---|---|
| Core | 4+1 |
| Memoria | Soldered-down 2GB LPDDR4 32-bit interface |
| Scheda Grafica | GC320 2D accelerator + GCNanoUltra 3D accelerator Embedded VPU (not for Lite processors), able to offer: VP9, HEVC/H.265, AVC/H.264, VP8 HW Decoding AVC/H.264, VP8 HW encoding OpenGL ES 2.0, OpenVG 1.1 support |
| Interfacce Video | LVDS Single/Dual Channel connector or eDP connector (factory alternatives) MIPI-CSI Camera interface connector Up to 1920x1080p60, 24bpp |
| Memoria Di Massa | Optional eMMC 5.1 drive on-board, up to 64GB MicroSD slot 2Kb I2C Flash QSPI Flash |
| Rete | 2x GbEthernet interfaces (1 optional) Optional shielded ultra-small dual Band WiFi 802.11 a/b/g/n/ac with BT 5.0 module onboard Optional soldered on-board LTE Cat 4 Modem with SIM slot or Telenor eSIM with 5MB Bundle |
| Usb | 2x USB 2.0 Host ports on Type-A socket 2x USB 2.0 Host ports on internal pin header 1x USB Host or client port on micro-AB connector (interface shared with the optional on-board modem) |
| Audio | Digital Mic In connector (2x PDM inputs) Amplified mono Speaker Output |
| Porte Seriali | Up to 2x RS-232 or RS-485 or CAN Serial ports (factory options, shared with GPIOs and SPI interfaces) 2x Debug UARTS |
| Altre Interfacce | I/O Connectors with: • 2xPWM @3.3V • GP I2C interface @3.3V • 1x Open Drain output (max 12V, 250mA) • 2x GPIOs @3.3V • 1xRS-232 or 1x RS-485 or 4x GPIOs / 1x UART or 1x CAN (factory options) • 1xRS-232 or 1x RS-485 or 4x GPIOs / 1x UART or 1x CAN + on-board ultra-low power RTC (factory options) Watchdog Dedicated connector for I2C Touch Screen Controller Support Onboard Buzzer (Comm. temp. range only) Optional Ultra Low Power RTC |
| Alimentazione | +12VDC÷ +24VDC |
| Sistema Operativo | Yocto Android (planned) |
| Dimensioni | 146x102 mm (3.5" form factor) |
| Operating Temperature | 0°C ÷ +60°C (extended version) -40°C ÷ +85°C (industrial version, limited to -30°C ÷ +85°C with WiFi/BT module on-board) *Measured at any point of SECO standard heatsink for this product, during any and all times (including start-up). Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider application-specific cooling solutions for the final system to keep the heatspreader temperature in the range indicated. |
Visualizza tutte le specifiche
Visualizza meno specifiche
| Processore | i.MX8M Mini Quad 4x Cortex®-A53 cores up to 1.8GHz |
|---|---|
| Core | 4+1 |
| Memoria | Soldered-down 2GB LPDDR4 32-bit interface |
| Scheda Grafica | GC320 2D accelerator + GCNanoUltra 3D accelerator Embedded VPU (not for Lite processors), able to offer: VP9, HEVC/H.265, AVC/H.264, VP8 HW Decoding AVC/H.264, VP8 HW encoding OpenGL ES 2.0, OpenVG 1.1 support |
| Interfacce Video | LVDS Single/Dual Channel connector or eDP connector (factory alternatives) MIPI-CSI Camera interface connector Up to 1920x1080p60, 24bpp |
| Memoria Di Massa | Optional eMMC 5.1 drive on-board, up to 64GB MicroSD slot 2Kb I2C Flash QSPI Flash |
| Rete | 2x GbEthernet interfaces (1 optional) Optional shielded ultra-small dual Band WiFi 802.11 a/b/g/n/ac with BT 5.0 module onboard Optional soldered on-board LTE Cat 4 Modem with SIM slot or Telenor eSIM with 5MB Bundle |
| Usb | 2x USB 2.0 Host ports on Type-A socket 2x USB 2.0 Host ports on internal pin header 1x USB Host or client port on micro-AB connector (interface shared with the optional on-board modem) |
| Audio | Digital Mic In connector (2x PDM inputs) Amplified mono Speaker Output |
| Porte Seriali | Up to 2x RS-232 or RS-485 or CAN Serial ports (factory options, shared with GPIOs and SPI interfaces) 2x Debug UARTS |
| Altre Interfacce | I/O Connectors with: • 2xPWM @3.3V • GP I2C interface @3.3V • 1x Open Drain output (max 12V, 250mA) • 2x GPIOs @3.3V • 1xRS-232 or 1x RS-485 or 4x GPIOs / 1x UART or 1x CAN (factory options) • 1xRS-232 or 1x RS-485 or 4x GPIOs / 1x UART or 1x CAN + on-board ultra-low power RTC (factory options) Watchdog Dedicated connector for I2C Touch Screen Controller Support Onboard Buzzer (Comm. temp. range only) Optional Ultra Low Power RTC |
| Alimentazione | +12VDC÷ +24VDC |
| Sistema Operativo | Yocto Android (planned) |
| Dimensioni | 146x102 mm (3.5" form factor) |
| Operating Temperature | 0°C ÷ +60°C (extended version) -40°C ÷ +85°C (industrial version, limited to -30°C ÷ +85°C with WiFi/BT module on-board) *Measured at any point of SECO standard heatsink for this product, during any and all times (including start-up). Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider application-specific cooling solutions for the final system to keep the heatspreader temperature in the range indicated. |
Visualizza tutte le specifiche
Visualizza meno specifiche

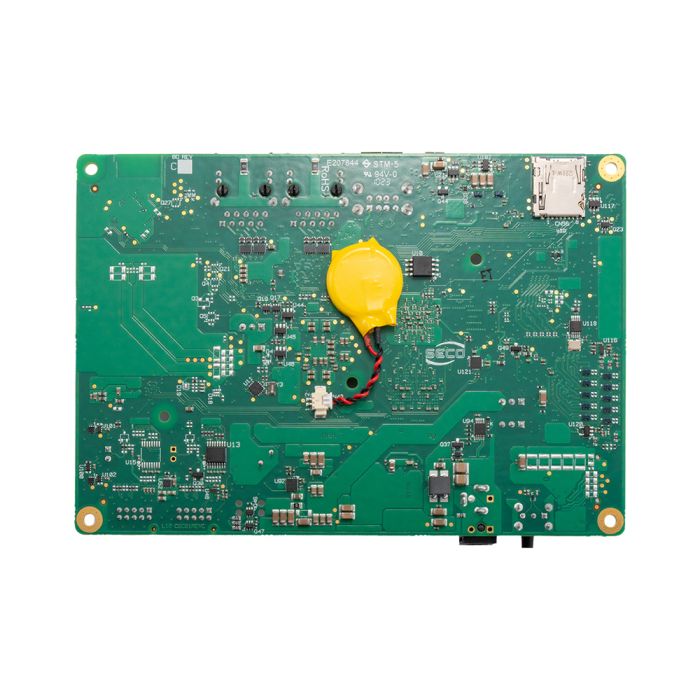

3.5” SBC con NXP i.MX 8M Mini Quad Processor. (ASTRID - C61).
Part Number: SC61-1533-C811-C1
Part Number: SC61-1533-C811-C1
Controlla gli articoli da aggiungere al carrello oppure
-
![SBC-3.5-MX8M-MINI HEAT SINK]()
SBC-3.5-MX8M-MINI HEAT SINK11,20 € escl. IVA/SPEDIZIONE
|
|
