SBC-3.5-TGL-UP3 1185GRE
1.396,00 €
SBC-3.5-TGL-UP3 1185GRE
Solitamente spedito in 2-4 giorni

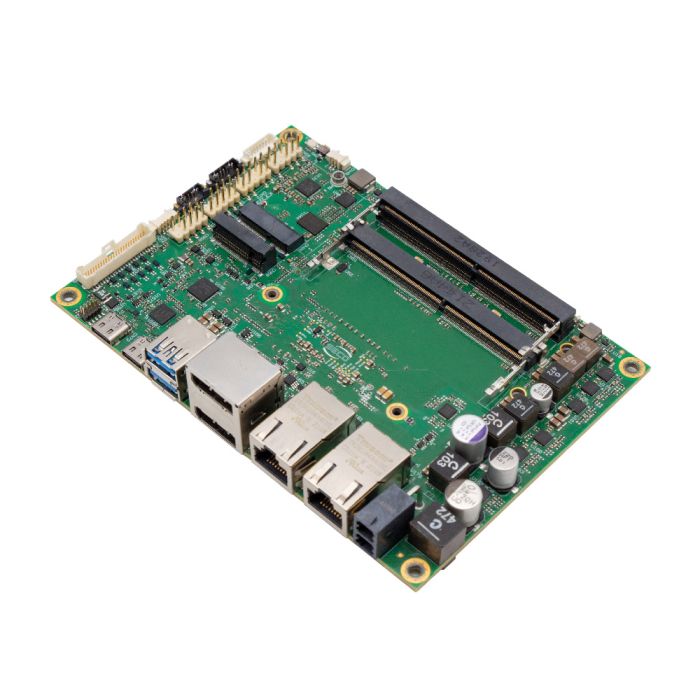

SBC 3.5” con processore Intel® Core™ di 11ma generazione i7-1185GRE.
Disponibile
1.396,00 €
escl. IVA/SPEDIZIONE
| CPU | Intel® Core™ i7-1185GRE, Quad Core @2.8GHz |
|---|---|
| Graphics | Intel® Iris® Xe Architecture with up to 96 EUs, up to 4 independent displays |
| Connectivity | Intel® Iris® Xe Architecture with up to 96 EUs, up to 4 independent displays |
| Memory | Two DDR4 SO-DIMM slots supporting DDR4-3200 ECC memory with IBECC |
SBC-3.5-TGL-UP3 1185GRE
| Processore | Intel® Core™ i7-1185GRE, Quad Core @2.8GHz |
|---|---|
| Core | 4 |
| Memoria | 2x DDR4-3200 SODIMM slots Up to 64GB with IBECC supported only with Intel® Core™ Industrial SoCs |
| Scheda Grafica | Up to two video decode boxes (VDBoxes) for enhanced video stream capabilities Support for up to 48 simultaneous 1080p streams ingestion Support for up to four independent displays at up to 4K60 HDR resolution or one display at 8K resolution |
| Interfacce Video | 2x Multimode DisplayPort 1.4, on Dual DP++ connector 2x Multimode Display Port 1.4 on USB Type-C connectors (alternate mode) 1x eDP 1.3 or Single/Dual-Channel 18-/24-bit LVDS interface |
| Memoria Di Massa | M.2 SATA SSD slot (socket 2 Key B type 2242/3042) ** M.2 NVMe slot (socket 3 Key M type 2280) PCIe Gen4 supported |
| Rete | 2x NBase-T Ethernet interfaces, supporting 2.5Gb Ethernet connection, managed by as many Intel® i225 2.5GbE controllers M.2 WWAN slot (socket 2 Key B type 2242/3042) coupled to on-board Micro-SIM slot. ** M.2 WiFi/BT slot (socket 1 Key E type 2230) |
| Usb | 2x SuperSpeed USB 10Gbps ports on Dual type-A socket 2x SuperSpeed USB 20Gbps ports on USB type-C slots 2x USB 2.0 on pin header |
| Audio | HD audio codec / Cirrus Logic CS4207 Mic In, Line Out and S/PDIF Out, on pin header |
| Porte Seriali | 2x RS-232/RS-422/RS-485 UARTS software configurable, on pin header |
| Altre Interfacce | 2x Expansion M.2 slot (socket 3 Key M type 2280) with 4x PCIe Gen3 lanes 8x GPIOs, 2x I2C, SPI connectors FAN connector RST_BTN#, PWR_BTN# and activity LED signals on pin header Optional TPM 2.0 on-board |
| Alimentazione | +12VDC .. +24VDC range Cabled coin cell battery for RTC |
| Sistema Operativo | Microsoft® Windows 10 IoT Enterprise LTSC 2021 Linux (Kernel ≥ 5.4 version) |
| Dimensioni | 146 x 102 mm (3.5” form factor) |
| Operating Temperature | 0°C ÷ +60°C (Commercial version) -40°C÷ +85°C (Industrial version) *Measured at any point of SECO standard heatspreader for this product, during any and all times (including start-up). Actual temperature will depend on the application, enclosure, and/or environment. Each customer must consider application-specific cooling solutions for the final system to keep the heatspreader temperature in the range indicated. |
Visualizza tutte le specifiche
Visualizza meno specifiche
| Processore | Intel® Core™ i7-1185GRE, Quad Core @2.8GHz |
|---|---|
| Core | 4 |
| Memoria | 2x DDR4-3200 SODIMM slots Up to 64GB with IBECC supported only with Intel® Core™ Industrial SoCs |
| Scheda Grafica | Up to two video decode boxes (VDBoxes) for enhanced video stream capabilities Support for up to 48 simultaneous 1080p streams ingestion Support for up to four independent displays at up to 4K60 HDR resolution or one display at 8K resolution |
| Interfacce Video | 2x Multimode DisplayPort 1.4, on Dual DP++ connector 2x Multimode Display Port 1.4 on USB Type-C connectors (alternate mode) 1x eDP 1.3 or Single/Dual-Channel 18-/24-bit LVDS interface |
| Memoria Di Massa | M.2 SATA SSD slot (socket 2 Key B type 2242/3042) ** M.2 NVMe slot (socket 3 Key M type 2280) PCIe Gen4 supported |
| Rete | 2x NBase-T Ethernet interfaces, supporting 2.5Gb Ethernet connection, managed by as many Intel® i225 2.5GbE controllers M.2 WWAN slot (socket 2 Key B type 2242/3042) coupled to on-board Micro-SIM slot. ** M.2 WiFi/BT slot (socket 1 Key E type 2230) |
| Usb | 2x SuperSpeed USB 10Gbps ports on Dual type-A socket 2x SuperSpeed USB 20Gbps ports on USB type-C slots 2x USB 2.0 on pin header |
| Audio | HD audio codec / Cirrus Logic CS4207 Mic In, Line Out and S/PDIF Out, on pin header |
| Porte Seriali | 2x RS-232/RS-422/RS-485 UARTS software configurable, on pin header |
| Altre Interfacce | 2x Expansion M.2 slot (socket 3 Key M type 2280) with 4x PCIe Gen3 lanes 8x GPIOs, 2x I2C, SPI connectors FAN connector RST_BTN#, PWR_BTN# and activity LED signals on pin header Optional TPM 2.0 on-board |
| Alimentazione | +12VDC .. +24VDC range Cabled coin cell battery for RTC |
| Sistema Operativo | Microsoft® Windows 10 IoT Enterprise LTSC 2021 Linux (Kernel ≥ 5.4 version) |
| Dimensioni | 146 x 102 mm (3.5” form factor) |
| Operating Temperature | 0°C ÷ +60°C (Commercial version) -40°C÷ +85°C (Industrial version) *Measured at any point of SECO standard heatspreader for this product, during any and all times (including start-up). Actual temperature will depend on the application, enclosure, and/or environment. Each customer must consider application-specific cooling solutions for the final system to keep the heatspreader temperature in the range indicated. |
Visualizza tutte le specifiche
Visualizza meno specifiche
SBC 3.5” con processore Intel® Core™ di undicesima generazione i7-1185GRE, Quad Core @2.8GHz (4.4GHz Turbo) with HT, 12MB Cache, 28W TDP (12W cTDP). (PRISMA - D64)
Part Number: SD64-2111-2120-I2
Part Number: SD64-2111-2120-I2
