Accessori

SOM-COMe-CT6-TGL-U HEAT SINK

41,25 €

Heat Sink Attivo.

DEV-KIT-COMe-T6

1.425,00 €

Compatibile con x86 e Arm COM Express® Type 6 modules.

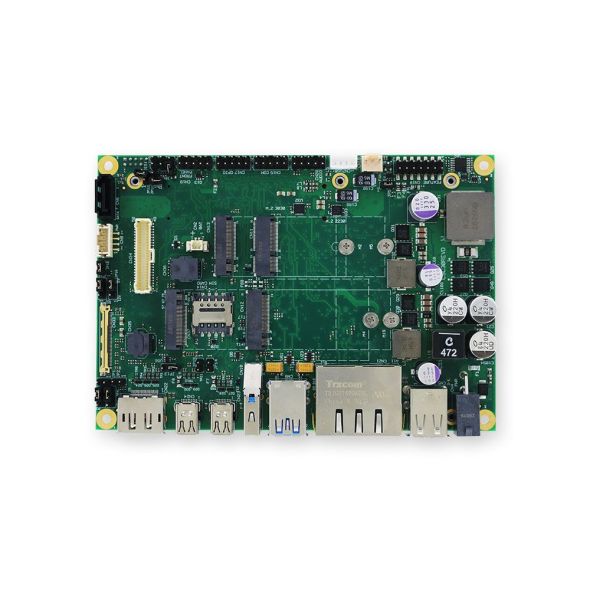

CARRIER-COMe-T6-C30

235,50 €

Carrier Board per Moduli COM Express™ tipo 6.

CABLE KIT CARRIER C30

38,25 €

Kit cavi per CCOMe-C30.

1.168,50 €

SOM-COMe-CT6-TGL-U 1185GRE

Tempi di consegna stimati: 2-5 giorni lavorativi successivi alla conferma del pagamento

Totale:

Prodotti selezionati:

Vai alla fine della galleria di immagini

Vai all'inizio della galleria di immagini

SOM-COMe-CT6-TGL-U 1185GRE

Solitamente spedito in 2-4 giorni

Con processore Intel® Core™ di 11ma generazione i7-1185GRE.

Disponibile

Quantità:

1.168,50 € escl. IVA/SPEDIZIONE

Maggiori Informazioni
CPU	Intel® Core™ i7-1185GRE, Quad Core @2.8GHz (4.4GHz Turbo Boost), 12MB Cache, with IBECC, 28W TDP (12W cTDP), with Hyperthreading - Industrial
Graphics	Integrated Intel® Iris® Xe Graphics, up to 96 Execution Units
Connectivity	1x GbE; 4x SuperSpeed USB 5Gbps; 8x USB 2.0; 8x PCI-e x1 Gen3; PEG x4 Gen4
Memory	Two DDR4 SO-DIMM slots supporting DDR4-3200 memory, up to 64GB IBECC DDR4 memory modules supported only with Intel® Core™ Industrial SoCs

SOM-COMe-CT6-TGL-U 1185GRE

Specifiche

Maggiori Informazioni
Processore	Intel® Core™ i7-1185GRE, Quad Core @2.8GHz (4.4GHz Turbo Boost), 12MB Cache, with IBECC, 28W TDP (12W cTDP), with Hyperthreading - Industrial
Core	4
Memoria	Two DDR4 SO-DIMM slots supporting DDR4-3200 memory, up to 64GB IBECC DDR4 memory modules supported only with Intel® Core™ Industrial SoCs
Scheda Grafica	Intel® Iris® Xe Graphics, up to 96 Execution Units Up to 4 independent displays supported Support DirectX 12, OpenGL 4.6, OpenCL 3.0 and Vulkan 1.2 HW accelerated video decode AVC/H.264, HEVC/H.265, VP81, VP9, AV1 HW accelerated video encode AVC/H.264, HEVC/H.265, VP81, VP9
Interfacce Video	Up to 3x Digital Display Interfaces (DDIs), supporting DP 1.2, eDP 1.4, HDMI 1.4, DVI 1 x eDP 1.4 or Single/Dual-Channel 18-/24-bit LVDS interface 1 x VGA interface eDP, DP: up to 5120x3200 @60Hz 24bpp / 7680x4320 @60Hz 30bpp with DSC HDMI: up to 4096x2160 @24Hz, 24bpp LVDS: up to 1920x1200 @60Hz VGA: up to 2048 x 1536 @50Hz
Memoria Di Massa	2x SATA Gen3 channels 2x PCI-e x4 ports available for M.2 NVMe drives
Rete	Gigabit Ethernet interface Intel® I225 GbE controller
Usb	4x SuperSpeed USB 5Gbps host ports 8x USB 2.0 Host ports
Audio	HD audio interface
Porte Seriali	2x UARTs
Altre Interfacce	8x PCI-e x1 Gen3 lanes PCI-express Graphics (PEG) x4 Gen4 SPI, I2C, SM bus, thermal management, FAN management LPC bus Optional TPM 2.0 on-board LID#/SLEEP#/PWRBTN#, Watchdog 4x GPI, 4x GPO
Alimentazione	8VDC..20VDC, +5VSB (optional), +3VRTC (optional)
Sistema Operativo	Microsoft® Windows 10 Microsoft® Windows 10 IoT Core Linux
Dimensioni	95 x 95 mm (COM Express® Compact Form factor, Type 6 pinout)
Operating Temperature	0°C ÷ +60°C (Commercial) -40°C ÷ +85°C (Industrial) Measured at any point of SECO standard heatspreader for this product, during any and all times (including start-up). Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider applicationspecific cooling solutions for the final system to keep the heatspreader temperature in the range indicated.

Visualizza tutte le specifiche

Specifiche

Maggiori Informazioni
Processore	Intel® Core™ i7-1185GRE, Quad Core @2.8GHz (4.4GHz Turbo Boost), 12MB Cache, with IBECC, 28W TDP (12W cTDP), with Hyperthreading - Industrial
Core	4
Memoria	Two DDR4 SO-DIMM slots supporting DDR4-3200 memory, up to 64GB IBECC DDR4 memory modules supported only with Intel® Core™ Industrial SoCs
Scheda Grafica	Intel® Iris® Xe Graphics, up to 96 Execution Units Up to 4 independent displays supported Support DirectX 12, OpenGL 4.6, OpenCL 3.0 and Vulkan 1.2 HW accelerated video decode AVC/H.264, HEVC/H.265, VP81, VP9, AV1 HW accelerated video encode AVC/H.264, HEVC/H.265, VP81, VP9
Interfacce Video	Up to 3x Digital Display Interfaces (DDIs), supporting DP 1.2, eDP 1.4, HDMI 1.4, DVI 1 x eDP 1.4 or Single/Dual-Channel 18-/24-bit LVDS interface 1 x VGA interface eDP, DP: up to 5120x3200 @60Hz 24bpp / 7680x4320 @60Hz 30bpp with DSC HDMI: up to 4096x2160 @24Hz, 24bpp LVDS: up to 1920x1200 @60Hz VGA: up to 2048 x 1536 @50Hz
Memoria Di Massa	2x SATA Gen3 channels 2x PCI-e x4 ports available for M.2 NVMe drives
Rete	Gigabit Ethernet interface Intel® I225 GbE controller
Usb	4x SuperSpeed USB 5Gbps host ports 8x USB 2.0 Host ports
Audio	HD audio interface
Porte Seriali	2x UARTs
Altre Interfacce	8x PCI-e x1 Gen3 lanes PCI-express Graphics (PEG) x4 Gen4 SPI, I2C, SM bus, thermal management, FAN management LPC bus Optional TPM 2.0 on-board LID#/SLEEP#/PWRBTN#, Watchdog 4x GPI, 4x GPO
Alimentazione	8VDC..20VDC, +5VSB (optional), +3VRTC (optional)
Sistema Operativo	Microsoft® Windows 10 Microsoft® Windows 10 IoT Core Linux
Dimensioni	95 x 95 mm (COM Express® Compact Form factor, Type 6 pinout)
Operating Temperature	0°C ÷ +60°C (Commercial) -40°C ÷ +85°C (Industrial) Measured at any point of SECO standard heatspreader for this product, during any and all times (including start-up). Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider applicationspecific cooling solutions for the final system to keep the heatspreader temperature in the range indicated.

Visualizza tutte le specifiche

COM Express Type 6 Compact con processore Intel® Core™ di undicesima generazione i7-1185GRE (QC @ 2.8GHz up to 4.4GHz, 28W TDP – 12W cTDP, w/IBECC). (CALYPSO - D40)
Part Number: MD40-2000-2120-I1

SOM-COMe-CT6-TGL-U 1185GRE

Tempi di consegna stimati: 2-5 giorni lavorativi successivi alla conferma del pagamento

1.168,50 € escl. IVA/SPEDIZIONE

Solo per le aziende. Accedi o registrati.

Aggiungi alla lista desideri

Related products

Controlla gli articoli da aggiungere al carrello oppure

Confronta con prodotti simili

SOM-COMe-CT6-TGL-U 1185GRE
Cpu

Intel® Core™ i7-1185GRE, Quad Core @2.8GHz (4.4GHz Turbo Boost), 12MB Cache, with IBECC, 28W TDP (12W cTDP), with Hyperthreading - Industrial

Gpu

Integrated Intel® Iris® Xe Graphics, up to 96 Execution Units

Ram

Two DDR4 SO-DIMM slots supporting DDR4-3200 memory, up to 64GB
IBECC DDR4 memory modules supported only with Intel® Core™ Industrial SoCs
SOM-COMe-CT6-TGL-U 1115GRE
Cpu

Intel® Core™ i3-1115GRE, Dual Core @3.0GHz (3.9GHz Turbo Boost), 6MB Cache, with IBECC, 28W TDP (12W cTDP), with Hyperthreading - Industrial

Gpu

Integrated Intel® Iris® Xe Graphics, up to 96 Execution Units

Ram

Two DDR4 SO-DIMM slots supporting DDR4-3200 memory, up to 64GB
IBECC DDR4 memory modules supported only with Intel® Core™ Industrial SoCs

SOM-COMe-CT6-TGL-U 1185GRE
